CAD779.00

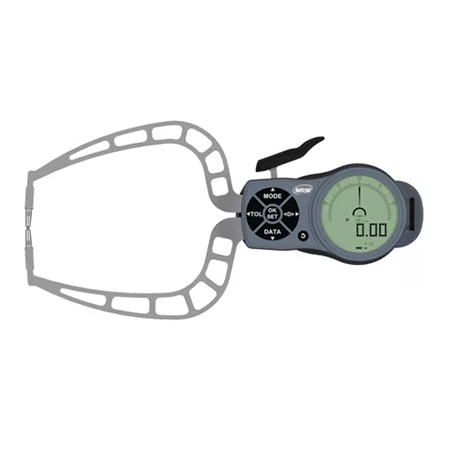

The MRM-K330 Electronic External Caliper Gauge is used for measuring the thickness of foams, foils, and tube walls.
It comes with a two-year manufacturer’s warranty.
Shop for MRM-K330 Digital Caliper Gauge at MRM Metrology, and save.
Buy MRM-K330 Caliper Gauge now for the best price.
Email us for the lowest price.
Click on [email protected] to request a quotation.
| â—‹ Measurement of grooves and thickness |
| â—‹ Electronic External measuring gauge |
| Measuring Range | (0 to 30) mm |
| Resolution | (0.001 , 0.002 , 0.005 , 0.01 , 0.02 , 0.05) mm |
| Accuracy | ± 0.04 mm |
| Range of Indication Azb | (0 to 30.5) mm |
| Repeatability Limit R | 0.02 mm |
| Measuring Force F min. | 0.9 N |
| Measuring Force F max. | 1.6 N |
| Type of Measuring Contact Movable | HM-Ball Ø 3 mm |
| Measuring Contact Movable Hb | 30 mm |
| Type of Measuring Contact Fixed | HM-Ball Ø 3 mm |
| Measuring Contact Fixed Hf | 30 mm |
| Measuring Contact Thickness Max. | Ø 4 mm |
| Measuring Depth Max. L | 114 mm |
| Weight | 430 g |
| Reference Temperature | 20°C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP67 |
| Power Supply | 2 LR03 Batteries (AAA) |
| Warranty | Two years limited manufacturer’s warranty |
209-951
| Included Items | Order No. |
| Wooden Box | 1732-71 |
| Optional Items | Order No. |
| Interface Adapter Bluetooth | 1961-13 |
| Interface Digimatic | 1961-09 + 2482-07 |
| Interface USB | 1961-09 + 2482-05 |
| Interface U-Wave | 1961-09 + 2482-04 + 2482-01 + 2482-02 |
| Holding Unit | 8007-10 |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MRM-K330 when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
MRM-K330 Electronic Caliper Gauge
For a quote, please email us at  [email protected]
Carl Farr –
Purchase this model which replaces a similar Mitutoyo unit that has been discontinued, works excellent for the application we use it for. Very similar in design and functionality as the older Mitutoyo unit we are still currently using. No issues with this unit for the past 3 months of ownership, used daily. Would recommend this product.
