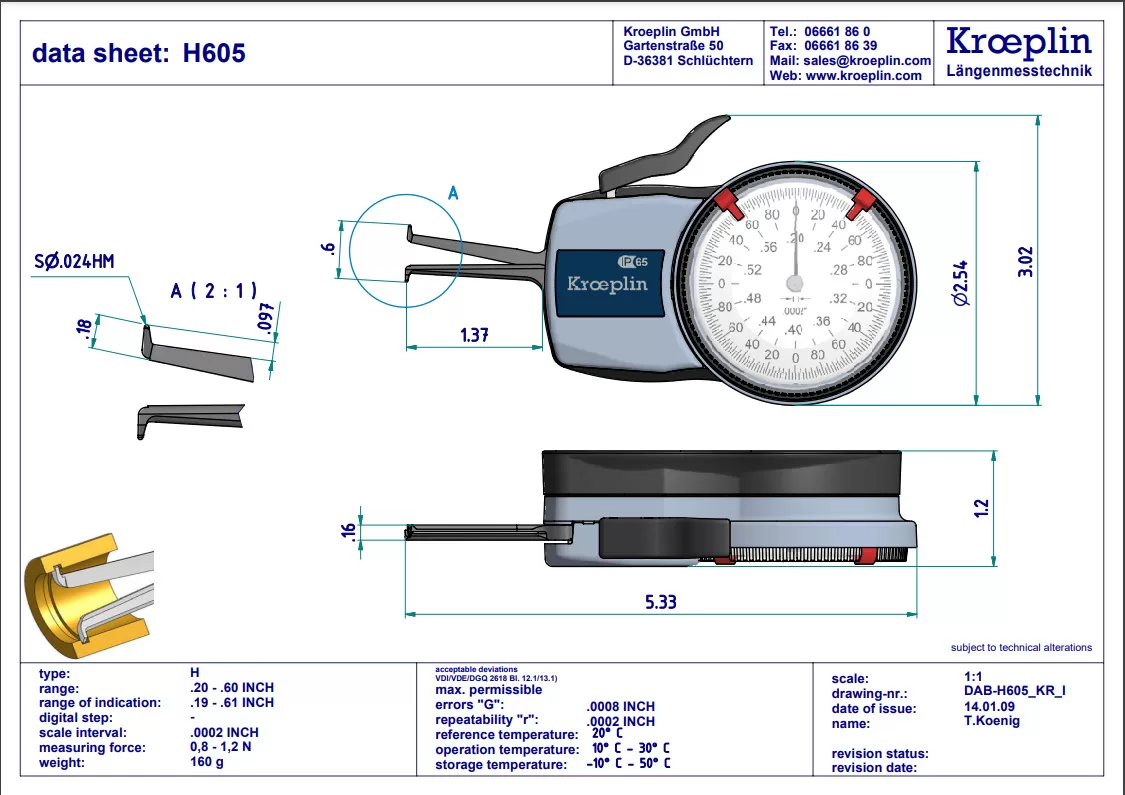

- Dimension
- Accessories
- Downloads
- Calibration
â—‹ Internal measurement |
Range | (0.20 to 0.60)” |
Graduation | 0.0008″ |
Accuracy | .0002″ |
Range of Indication Azb | (0.19 to 0.61)” |
Repeatability Limit R | .0002″ |
Measuring Force F min. | 0.8 N |
Measuring Force F max. | 1.2 N |
Type of Measuring Contact Movable | Chisel R Ø .004″ |
Measuring Contact Movable Hb | 0.35″ |
Type of Measuring Contact Fixed | HM-Ball 0.24″ |
Type of Measuring Contact Fixed Hf | 0.97″ |
Measuring Contact Thickness Max | 0.047″ |
Measuring Depth Max. L | 1.38″ |
Weight | 160 g |
Reference Temperature | 20°C / (-10 to 30)°C |
Storage Temperature | (-10 to 50)°C |
Protection Class | IP65 |
Manufacturer’s Warranty | Two years limited manufacturer’s warranty |
209-354
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MRM-H605 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
MRM-H605 Mechanical Caliper Gauge
For a quote, please email us at  [email protected]
