Product Description
- Features
- Specifications

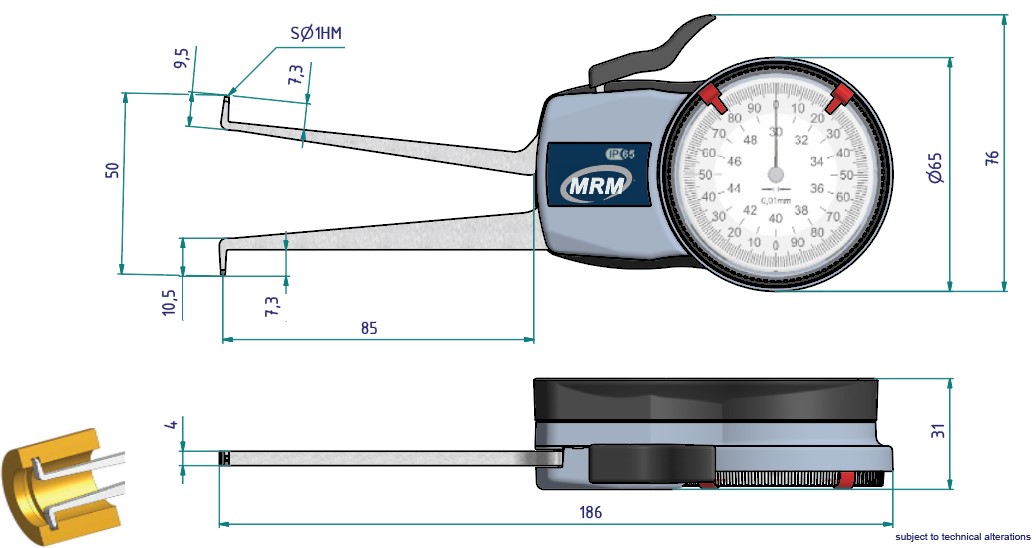

- Dimensions
- Accessories
- Downloads
- Calibration
○ Indicator should be used in conjunction with a setting ring or micrometer |
○ White dial face for easier, precise measurement readings |
○ Crystal is glare-free with a scratch-resistant coating |
○ IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet |
○ Supplied in a fitted plastic case |
Range | (30 to 50) mm |
Graduation | 0.01 mm |
Accuracy | ± 0.03 mm |
Range of Indication Azb | (29.5 to 50.5) mm |
Repeatability Limit R | 0.01 mm |
Measuring Force F min. | 1.1 N |
Type of Measuring Contact Movable | HM-Ball Ø 1.0 mm |
Measuring Contact Movable Hb | 7.3 mm |
Type of Measuring Contact Fixed | HM-Ball Ø 1.0 mm |
Type of Measuring Contact Fixed Hf | 7.3 mm |
Measuring Contact Thickness Max | 2.0 mm |
Measuring Depth Max. L | 85 mm |
Weight | 185 g |
Reference Temperature | 20°C / (-10 to 30)°C |
Storage Temperature | (-10 to 50)°C |
Protection Class | IP65 |
Manufacturer’s Warranty | Two years limited manufacturer’s warranty |
209-304
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-H230 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

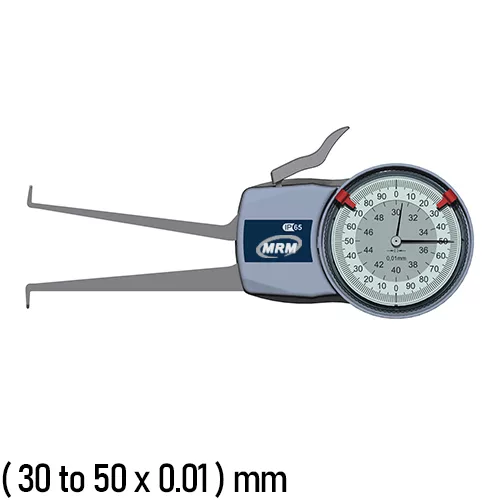

MRM-H230 Internal Dial Caliper Gauge
For a quote, please email us at [email protected]
