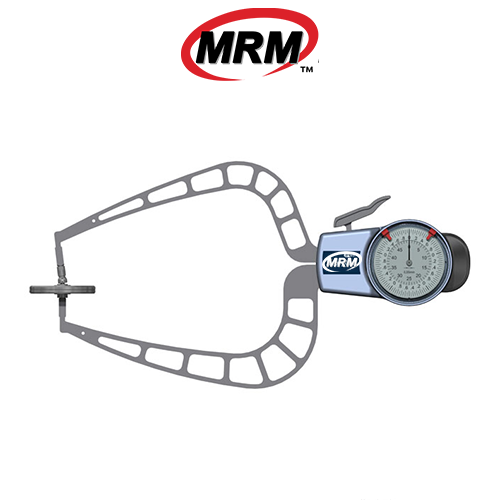

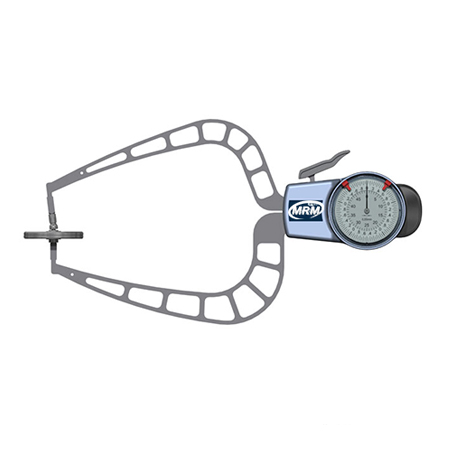

MRM-D450T Dial External Caliper Gauge (0 to 50) mm

CAD 895.00

The MRM-D450T Dial External Caliper Gauge utilizes spring-loaded jaws to make constant point contact pressure to take highly accurate comparison measurements of hole diameters and groove and tube thicknesses. The dial display provides precise, readable measurements.

It comes with a two-year manufacturer’s warranty. Shop for MRM-D450T Dial Caliper at MRM Metrology, and save. Buy MRM-D450T Caliper now for the best price in Canada.

Email us for the lowest price. Click on [email protected] to request a quotation.

Other Models
SKU: MRM-D450T Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Indicator should be used in conjunction with a setting ring or micrometer
○ White dial face for easier, precise measurement readings
○ Crystal is glare-free with a scratch-resistant coating
○ IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet
○ Supplied in a fitted plastic case

Range (0 to 50) mm
Accuracy 0.05 mm
Range of Indication Azb (0 to 50.5) mm
Graduation 0.05 mm
Repeatability Limit R 0.025 mm
Measuring Force F min. 0.8 N
Measuring Force F max. 1.7 N
Type of Measuring Contact Movable HM-Ball Ø 3 mm
Measuring Contact Movable Hb 30 mm
Measuring Contact Fixed Hf 30 mm
Weight 430 g
Measuring Depth Max. L 167 mm
Reference Temperature 20°C / (-10 to 30)°C
Storage Temperature (-10 to 50)°C
Protection Class IP65
Manufacturer’s Warranty Two year limited manufacturer’s warranty

209-921



○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc. ○ Use CAL MRM-D450T when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the MRM-D450T Dial Caliper Gauge

For a quote, please email us at  [email protected]
