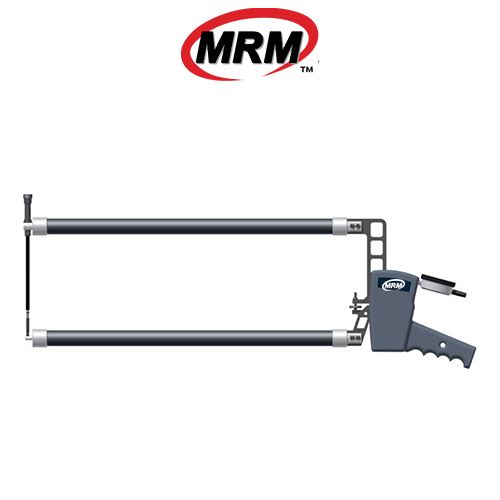

MRM-D12100BJ Mechanical External Caliper Gauge (0 to 100) mm

CAD 1,895.00

The MRM-D12100BJ Mechanical External Caliper Gauge is used for measuring the thickness of foams and foils. It comes with a two-year manufacturer’s warranty. Shop for MRM-D12100BJ Dial Caliper Gauge at MRM Metrology, and save. Buy MRM-D12100BJ Caliper Gauge now for the best price in Canada.

Email us for the lowest price. Click on [email protected] to request a quotation.

Other Models
SKU: MRM-D12100BJ Category:

Product Description

  • Features
  • Specifications

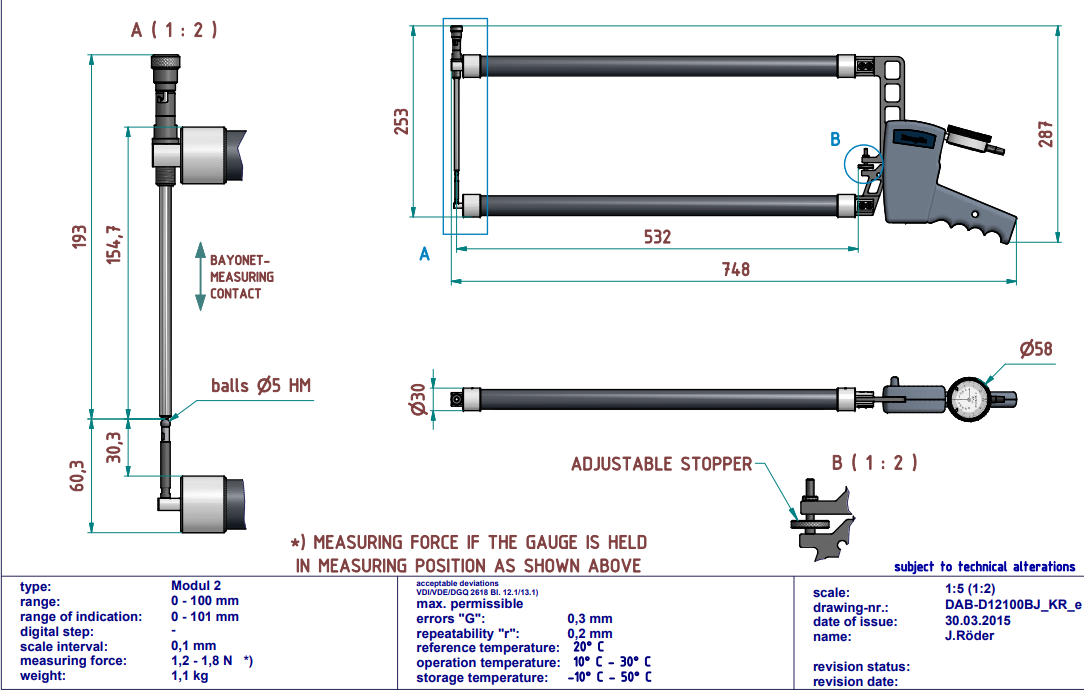

  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Measurement of foams and foils

Measuring Range (0 to 100) mm
Resolution (0.001 , 0.002 , 0.005 , 0.01 , 0.02 , 0.05) mm
Accuracy ± 0.15 mm
Repeatability Limit R 0.1 mm
Measuring Force F min. 0.8 N
Measuring Force F max. 8 N
Type of Measuring Contact Movable HM-Ball Ø 5 mm
Measuring Contact Movable Hb 39 mm
Type of Measuring Contact Fixed Flat Ø 50 mm
Measuring Contact Fixed Hf 7 mm
Measuring Depth Max. L 532 mm
Weight 1100 g
Reference Temperature 20°C / (-10 to 30)°C
Storage Temperature (-10 to 50)°C
Protection Class IP67
2 years limited manufacturer’s warranty Two years limited manufacturer’s warranty

Wooden Box HK

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc. ○ Use CAL MRM-D12100BJ when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the MRM-D12100BJ Mechanical External Caliper Gauge

For a quote, please email us at  [email protected]
