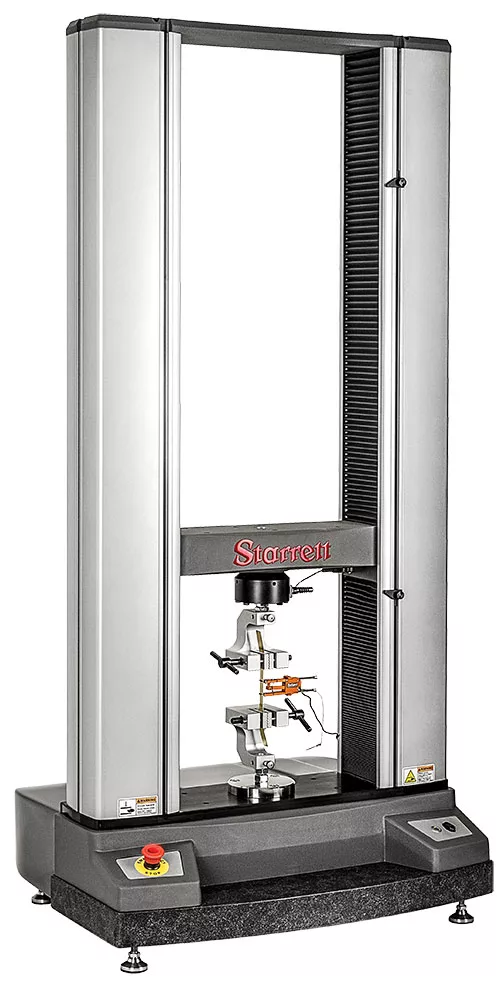

MMD-10K-L3 Material Measurement System

The Starrett MMD-10K-L3 is a dual-column material measurement system optimized for high-volume production and quality control testing. The MMD-10K-L3 frame has a 10kN (2250lbf) testing capacity ideal for tensile or compressive testing. The system includes the test frame, controller & software. The controller features a Windows operating system with high resolution color, multi-touch display, Wi-Fi, Bluetooth and USB 2.0 port(s). The L2 Plus software features analysis tools to measure and display results on a single graph. Once this is complete, those results are automatically measured and placed on all of the test runs within your batch. Display full graphs, split graphs with data tables or as a data table complete with statistical calculations or tolerance results.


Capacity: 1000 kgf, 10 kN, 2250 lbf
Accuracy: Load Cell Dependent
Accuracy Strain Measurement: ± 0.5% of reading down to 1/50 of full scale with ASTM E83 class B or ISO 9513 class 0.5 extensometer



Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Other

Features
  • Turnkey 10kN (2250lbf) Material Measurement System includes Testing Frame, L3 Controller with L3 Force Measurement Software
  • Easily Perform Tension, Compression, Flexural, Shear, Peel and COF Testing
  • Perform Complex Multi-stage Testing Using Advanced Test Builder Application
  • Compact Footprint (31″W x 29″D)
  • Use the Analysis Tools to Measure and Display Results on a Single Graph
  • High Resolution Encoder for Precise Position Control Resolution
  • Dual Strain Channels for Extensometers

Specifications
Frame Type Dual Column
User Interface All-In-One PC
Load Capacity 1000 kgf, 10 kN, 2250 lbf
Maximum Speed 1525 mm/min, 60″/min
Minimum Speed 0.001 mm/min, 0.00004″/min
Return Speed 1525 mm/min, 60″/min
Total Crosshead Travel 1162 mm, 45.75″
Total Vertical Test Space 1270 mm, 50″
Crosshead Throat Depth 424 mm, 16.7″
Accuracy Load Cell Dependant
Accuracy Strain Measurement ± 0.5% of reading down to 1/50 of full scale with ASTM E83 class B or ISO 9513 class 0.5 extensometer
Load Cell Sensor Models Models FLC Series, MLC Series, or ULC Series
Extensometer I/O 2 channels for independent connection to an extensometer(s)
USB I/O I/O Standard
Power Single Phase Voltage (Vac) ± 10% 100, 120, 200, or 240
Operating Temperature 50 to 100F, (10 to 38F)
Humidity 10 to 90%, non-condensing
CE Compliant Yes
Dimensions
Height 1626 mm, 64″
Width 787 mm, 31″
Depth 736 mm, 29″
Weight 181 kg, 400 lbs
