Product Description
- Features
- Specifications
- Dimensions
- Accessories
- Downloads
- Other
Features

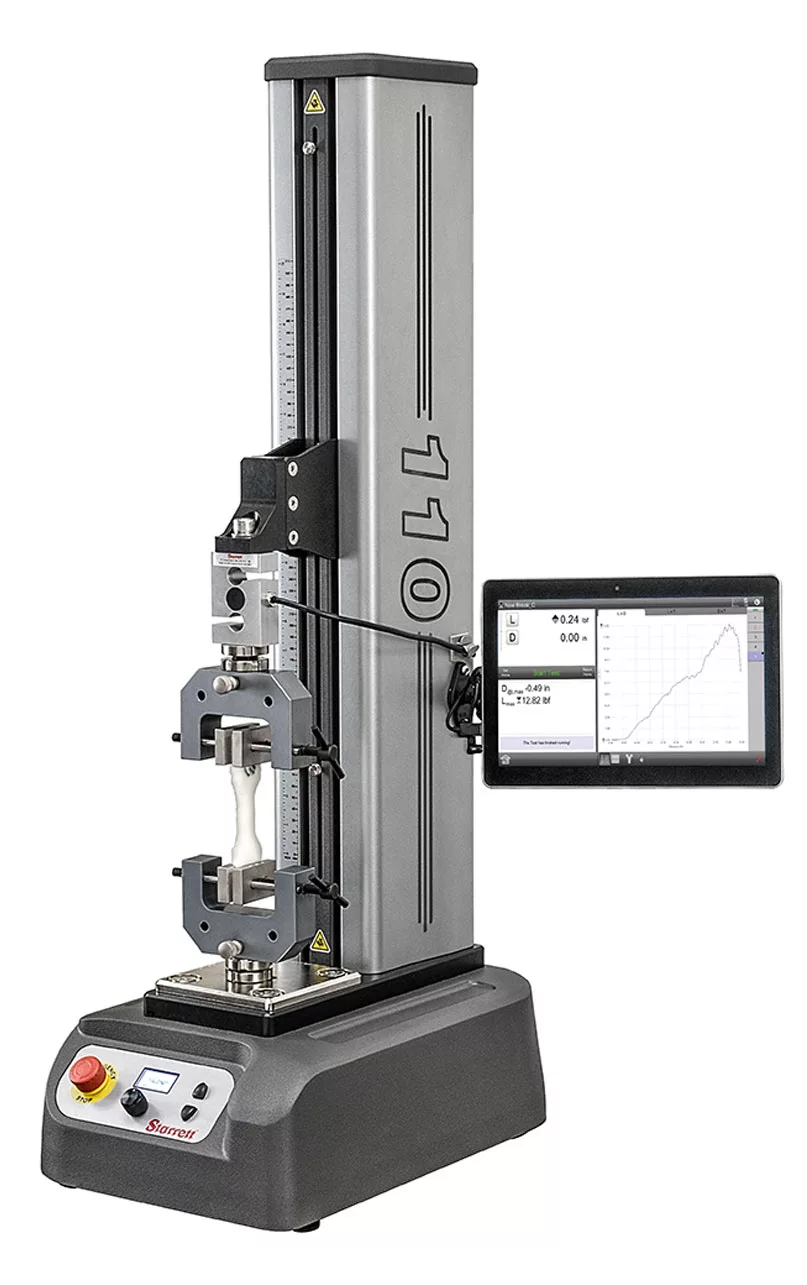

- Turnkey 110 lbf force testing system, includes testing frame, L1 controller, and L1 software
- Easily perform load, distance, beak, cyclic, constant load and distance testing
- Review results in multiple formats including; results; graph, data, tolerance, and statistics
- Reference distance travel ruler
- Compact design is ideal for small work space and for lean manufacturing environments
- Adjustable, magnetic travel limits
- Speed selection dial with high resolution display
- Conforms to All Relevant European Standards and Carries CE Mark
Specifications
| Capacity | 50 kg, 500 N, 110 lbf |
| Crosshead Travel | 508 mm, 20″ |
| Vertical Test Space | 559 mm, 22″ |
| Travel – Position Accuracy | ± 0.001” or 0.1% of displacement, whichever is greater |
| Travel Resolution | 0.025 mm, 0.001″ |
| Speed Maximum | 0.05 mm/min, 0.002″/min |
| Speed Maximum @ Full Capacity | 1016 mm/min, 40″/min |
| Speed Accuracy | Better than 0.1% of test speed |
| Cycling Maximum Number | Counts 99,999 |
| Cycling Maximum Duration | 27 hours |
| Load Hold Maximum Duration | 27 hours |
| Test Frame Communications | USB 2.0, RS-232 |
| Input/Output Channels | 0 – 24Vdc (independent, configurable) |
| Power | +10% 110, 120, 220, 230, 240, 50/60 Hz |
| Electrical Phase | Single Phase Voltage (Vac) |
| Operating Temperature | +40 to +110°F, +5 to +43°C |
| Humidity | 10 to 90%, non-condensing | CE Compliant | Meets all relevant CE standards for safety, immunity, noise |
Dimensions
| Height | 940 mm, 37″ |
| Depth | 419 mm, 16.5″ |
| Width | 292 mm, 11.5″ |
| Throat Distance | 100 mm, 3.9″ |
Accessories
| BLC-2 (73115) | BLC-2 Load Cell Sensor |
| BLC-5 (73118) | BLC-5 Load Cell Sensor |
| BLC-10 (73110) | BLC-10 Load Cell Sensor |
| BLC-20 (73116) | BLC-20 Load Cell Senor |
| BLC-50 (73119) | BLC-50 Load Cell Senor |
| BLC-100 (73114) | BLC-100 Load Cell Senor |
