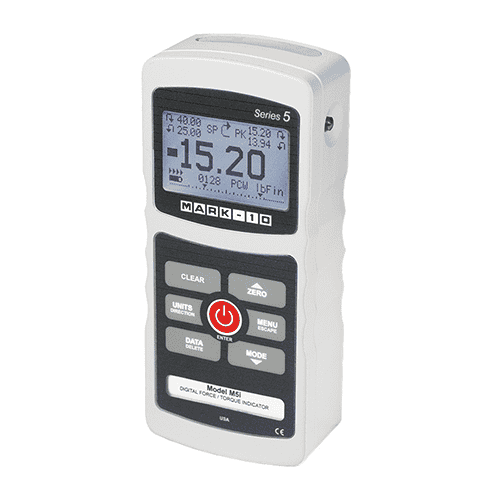

M5i Mark-10 Digital Force and Torque Indicator, Advanced

5.00 out of 5 based on 1 customer rating
(1 customer review)

CAD 1,259.00

FREE ISO 17025 Calibration Certificate when purchased with a Force or Torque Sensor.
FREE Shipping in Canada.

The M5i Advanced Digital Force and Torque Indicator is designed to work with a wide range of Mark-10 Remote Force and Torque Sensors. With exclusive Plug & Test® technology, all calibration and configuration data is saved within the sensor’s smart connector (not the Indicator) allowing for true interchangeability.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for M5i Force and Torque Indicator at MRM Metrology, and save.
Buy M5i Force and Torque Indicator now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
SPC
Free Shipping Canada
ISO17025 Free Calibration



Force Sensors
Torque Sensors
Grips & Attachments

Other Models
SKU: M5i-1 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Interchangeable force and torque sensors through Plug & Test™ technology (sensors are sold separately)
○ Sensor password protection, for preventing use of an unauthorized sensor
○ Password protection for individual keys and calibration
○ High-speed 7,000 Hz sampling rate
○ USB, RS-232, Mitutoyo, and analog outputs
○ Large backlit graphic display
○ 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
○ Live load bar graph with set point markers
○ Programmable set points, with alarms and outputs
○ Peak readings and set points always displayed
○ Averaging mode – calculates average readings over time
○ External trigger mode – for switch contact testing or remotely stopping display update
○ Automatic data output via USB/RS-232
○ 5 selectable units of measurement
○ Configurable audio alarms and key tones
○ CE mark

Accuracy ± 0.1% of Full Scale + Sensor
Sampling Rate 7,000 Hz
Power AC power adapter or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Backlight On Up to 7 hours of continuous use
Backlight Off Up to 24 hours of continuous use
USB / RS-232 Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control
Mitutoyo (Digimatic) Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog ± 1 VDC, ± 0.25% of full scale at capacity
General Purpose Three open drain outputs, one input
Set Points Three open drain lines
Configurable Settings Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe Overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 0.3 kg , 0.7 lb
Environmental Requirements (40 to 100)°F, max. 96% humidity, Non-condensing
Manufacturer’s Warranty Three years (See individual statement for further details)

COMPARISION CHART
Force and Torque Indicators

IN [MM]


Included Items
12-1049 Carrying case
09-1165 USB cable
AC1030 AC adapter
08-1026 Battery (Installed in Indicator)
Optional Items
AC1008 Table top stand
15-1004 MESUR®gauge software
09-1214 Interface cable, gauge to test stand crosshead
09-1252 Interface cable, indicator to test stand crosshead
09-1162 Interface cable, gauge to test stand controller
09-1165 USB cable, type micro B to A
09-1158 USB cable, type B to A
09-1163 Serial cable, gauge to RS-232, DB-9
09-1164 Cable, gauge to Mitutoyo SPC
09-1166 Analog cable, gauge to dual banana plug
09-1056 Serial cable, test stand controller to RS-232 DB9
09-1066 Cable, travel display to Mitutoyo SPC
09-1180 Cable, set point / overload protection, gauge to test stand

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL M5i when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
M5i Mark-10 Digital Force and Torque Indicator

For a quote, please email us at  [email protected]
