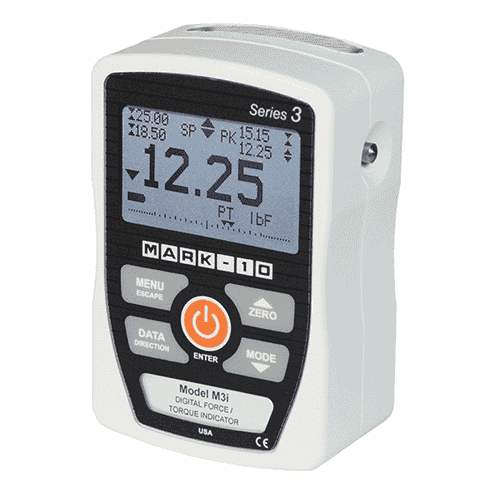

M3i Mark-10 Digital Force and Torque Indicator

5.00 out of 5 based on 1 customer rating
(1 customer review)

FREE ISO 17025 Calibration Certificate when purchased with a Force or Torque Sensor.
FREE shipping in Ontario.

The M3i Digital Force and Torque Indicator is designed to work with a wide range of Mark-10 Remote Force and Torque Sensors. With exclusive Plug & Test® technology, all calibration and configuration data is saved within the sensor’s Smart Connector (not the Indicator), allowing for true interchangeability.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for M3i Force and Torque Indicator at MRM Metrology, and save.
Buy M3i Force and Torque Indicator now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
SPC
ISO17025 Free Calibration



Force Sensors
Torque Sensors
Grips & Attachments

Other Models
SKU: M3i Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Interchangeable force and torque sensors through Plug & Test™ technology (sensors are sold separately)
○ High-speed 2,000 Hz sampling rate
○ Ultra-compact size
○ Large backlit graphic display
○ Programmable set points with pass/fail indicators
○ Peak readings and set points always displayed
○ Configurable audio alarms and key tones
○ Programmable auto-shutoff
○ Configurable audio alarms and key tones
○ Battery or AC operation
○ MESUR™ Lite data collection software included
○ CE mark

Accuracy ± 0.2% of Full Scale + Sensor
Sampling Rate 2,000 Hz
Power AC power adapter or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Backlight On Up to 7 hours of continuous use
Backlight Off Up to 24 hours of continuous use
USB Output Configurable to 115,200 baud
Configurable Settings Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe Overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 0.3 kg , 0.7 lb
Environmental Requirements (40 to 100)°F, max. 96% humidity, Non-condensing
Manufacturer’s Warranty Three years (See individual statement for further details)

Force and Torque Indicators
Comparision Chart

IN[MM]


Included Items
12-1049 Carrying case
09-1165 USB cable
AC1030 AC adapter
08-1026 Battery (Installed in Indicator)
Optional Items
AC1008 Table top stand
15-1004 MESUR®gauge software

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL M3i when requesting calibration services from MRM Metrology.



Calibration and Repair Services

MRM provides Calibration and Repair Services for the
M3i Mark-10 Digital Force and Torque Indicator

For a quote, please email us at  [email protected]
