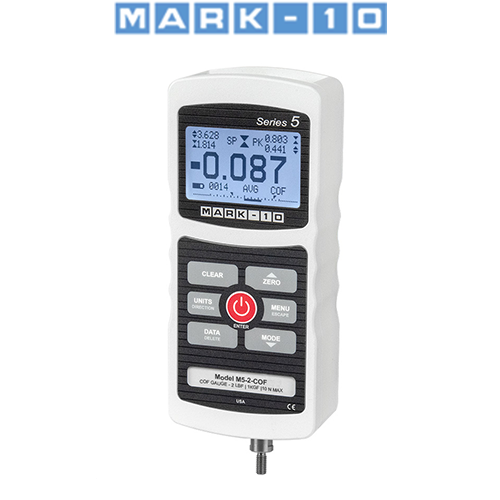

M5-2-COF Mark-10 Coefficient of Friction Gauge, 5 x 0.001 COF*

CAD 1,815.00

The M5-2-COF Coefficient of Friction (COF) Gauge is an integral part of a COF Testing System, typically including a Motorized Test Stand and COF fixture. With a capacity of 2 lbf (10 N). The COF Gauge can be used to measure friction for a wide range of materials. Ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients are displayed on the backlit LCD, and are calculated from a user-programmable sled weight.

Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. Configurable password protects against unauthorized changes to settings. The M5-2-COF may also be used for a number of common tension and compression testing applications.

The COF Gauge is based on Mark-10’s Series 5 advanced digital force gauges, and includes the series’ full set of functions and settings. The M5-2-COF includes MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data saved in the gauge’s memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for M5-2-COF Coefficient of Friction Gauge at MRM Metrology, and save.
Buy M5-2-COF Coefficient of Friction Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA

M5-2
G1086

Other Models

SKU: M5-2-COF Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Calculates static and kinetic coefficients of friction
○ Configurable sled weight (100 – 1000 g)
○ USB, RS-232, Mitutoyo, and analog outputs
○ 1,000-point data memory with statistics and outputs
○ Programmable set points, with indicators and outputs
○ Live load bar graph with set point markers
○ Configurable audio alarms and key tones
○ Password protection, configurable for individual keys and calibration
○ Fixture + Gauge Kit is available

Capacity x Resolution 5 x 0.001 COF*, 2 x 0.0005 lbf, 32 x 0.01 ozf, 1 x 0.0002 kgf, 1000 x 0.2 gf, 10 x 0.002 N
Accuracy ± 0.1% of full scale
Sampling rate 7000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Outputs USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ± 1 VDC, ± 0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 1 lb [0.5 kg]
Shipping weight 3 lb [1.4 kg]
Included items Carrying case with hook, chisel, cone, V-groove, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR®Lite software, MESUR®gauge and MESUR®gauge Plus 90-day trial, and user’s guide), and NIST-traceable certificate of calibration with data.
ECCN EAR99
Country of origin USA
Warranty Three years limited manufacturer warranty


Thread #10-32M UNF

IN [MM]


Included Items
G1028 Extension Rod
G1026 Cone
G1025 Chisel
G1027 V-Groove
G1029 Flat
G1024 Extension Rod
Optional Items
15-1004 MESUR™gauge software
AC1111 Spare USB cable
AC1118 Spare rechargeable battery
AC1030 Spare AC adapter, 110V
AC1031 Spare AC adapter, 220V EUR
AC1032 Spare AC adapter, 220V UK
AC1035 Spare AC adapter, 220V AUS
AC1052 Mounting plate kit, 0.12 – 500 lbf force gauges

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL M5-2-COF when requesting calibration services from MRM Metrology.
