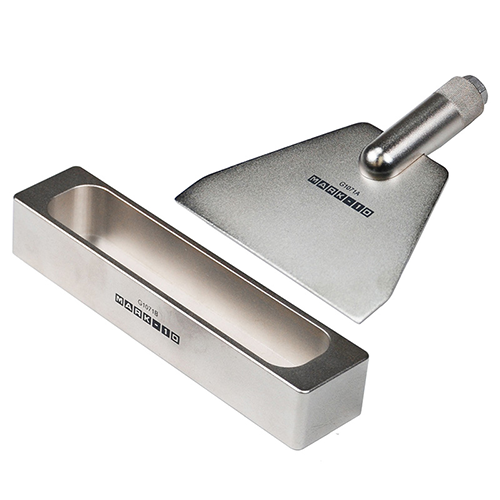

G1071 Mark-10 Score Bend Fixture

The G1071 set of fixtures is used to produce a 90° bend in fiber board materials and plastics. The fixtures are compliant to TAPPI standard T829 for evaluating the relative quality of scores in corrugated containers. Upper and lower fixtures are easily removable. Use this fixture with a choice of test stand and force gauge to create a complete score bend testing system.

Note: These fixtures are designed for compatibility with a Mark-10 force gauge and test stand. The resulting value displayed on the force gauge will be a force value. The abstract score ratio as called for in T829 is not automatically calculated.

Made in the USA and comes with a three year limited manufacturer’s warranty.
Shop for G1071 at MRM Metrology.

SKU: G1071 Categories: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Set of upper and lower dies produce 90° bend in corrugated board and plastics
○ Meets the requirements of TAPPI T829
○ Fixtures are easily removable
○ Mounts directly to the following test frames (motorized test frames recommended):
F105, F305, F505, F755, and F1505 test frames.
ESM303, ESM750, ESM1500, ES30, TSC1000, and TSF test stands.
Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate

Maximum Force 250 N ; 50 lbf
Weight Upper die: 0.07 kg ; 0.15 lb
Lower die: 0.14 kg ; 0.30 lb
HS Code 9024800000
ECCN EAR99
Country of Origin USA

IN [MM]
