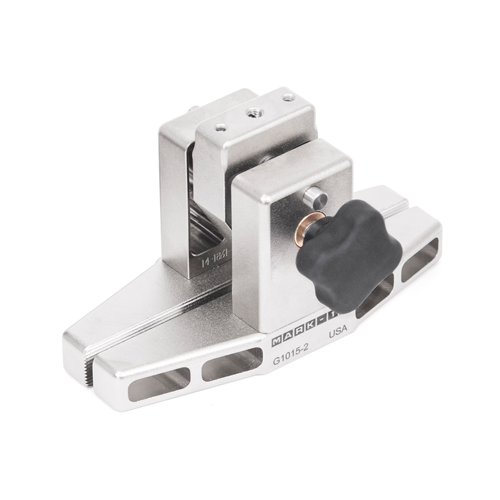

The G1015-2 grip is designed for film, paper, and other thin materials for tensile and peel testing, as per ASTM F88 and related standards. Adjustable serrated interlocking jaws effectively secure samples, while an ergonomic, rubberized knob easily engages and disengages the sample. A precision Acme screw provides durability and longevity over repeated engagements.
Made in the USA and comes with a three year limited manufacturer’s warranty.
Shop for G1015-2 at MRM Metrology.
| â—‹ These grips are designed for film, paper, and other thin materials for tensile and peel testing, as per ASTM F88 and related standards |
| â—‹ Adjustable serrated interlocking jaws effectively secure samples for up to 100 lbF (500N) of force |
| â—‹ Ergonomic, rubberized knob easily engages and disengages the sample |
| â—‹ A precision Acme screw provides durability and longevity over repeated engagements |
| Capacity | 500 N ; 100 lbf |
| Weight | 0.36 kg ; 0.80 lb |
| HS Code | 9024800000 |
| ECCN | EAR99 |
| Country of Origin | USA |
| A | B | C | D | E |
| 127.0 mm ; 5.0″ | 76.2 mm ; 3.0″ | 48.3 mm ; 1.9″ | (0 to 12.7) mm ; (0 to 0.5)” | 35.6 mm ; 1.4″ |
| Swivel adapter | Swiveling action provides proper sample alignment in pull testing applications |
| Eye end adapters | Allow for quick grip installation and removal, and prevent grip rotation Mount to common test frames, load cells, and force gauges |
