G1046 Mark-10

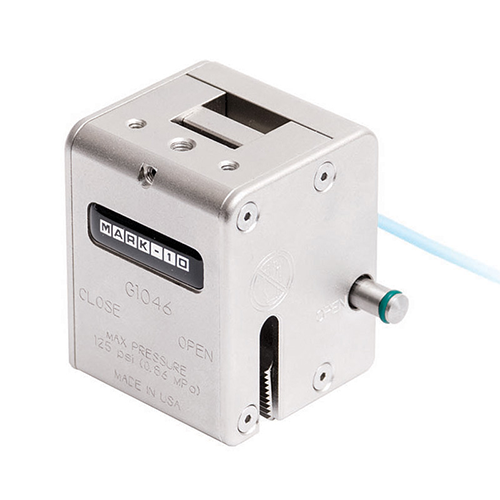

G1046 Mark-10 Pneumatic Peel Test Grip

The G1046 This fully enclosed, air-powered grip is ideal for seal strength testing of packaging, elongation testing of various materials, and other tensile testing requirements, per ASTM F88 / D1876. Serrated interlocking jaws effectively grip samples for up to 100 lbF (500 N) of force.

The grip features an industry-unique integrated open/close valve for quick sample engagement and disengagement, an added benefit for repetitive applications. An air connection kit, consisting of air tubing and fittings, is available as an option. Use a pair of these pneumatic grips with a force gauge and a test stand to create a complete testing system.

Made in the USA and comes with a three year limited manufacturer’s warranty.
Shop for G1046 at MRM Metrology.

SKU: G1046 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Integrated open/close valve
○ Fully enclosed design for safety

Capacity 100 lbF @ 100 PSI ; 500 N @ 0.86 MPa
Weight 0.26 kg ; 0.58 lb
Max. Pressure 0.86 MPa ; 125 PSI
Air Input Thread #10-32 UNF
HS Code 9024800000
ECCN EAR99
Country of Origin USA

A: 0 – 0.13 IN [0 – 3.3 MM]


OPTIONAL ITEMS
Air Connection Kit Consists of a complete set of components needed to connect two pneumatic grips
Swivel adapter Swiveling action provides proper sample alignment in pull testing applications
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation
Mount to common test frames, load cells, and force gauges
Maintenance kit* Consists of:
A. Rubber membrane (qty. 5)
B. Cotton swab (qty. 12)
C. Alcohol wipe (qty. 5)
D. Wrench set

*The flexible internal membrane actuating the movable jaw has a variable life expectancy dependent upon the maximum air pressure used and the quality of the compressed air. It should be free from impurities, solvents and oils. Since field conditions are outside of Mark-10’s control, the standard 3-year warranty does not apply to the flexible membrane. For convenience, a spare membrane and alcohol wipe is included with every new grip. A membrane repair kit may be purchased from Mark-10.
