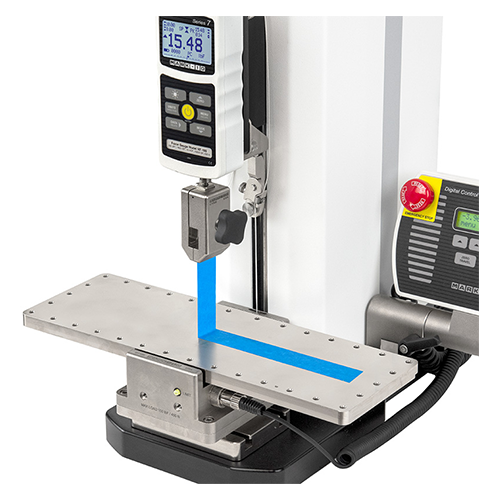

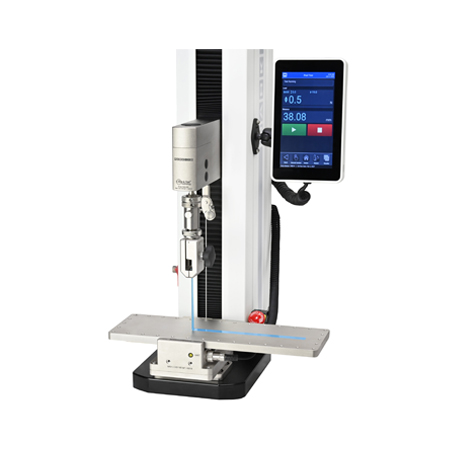

The G1109 fixture is designed for peel testing of tapes, films, foil seals, and other materials, per ASTM D6862 / D3330 / D903. A large, flat working table moves horizontally as the test stand’s crosshead moves up via direct cable linkage. An optional adjustable-angle mount tilts the fixture up to ± 30°. Another optional adapter uses an adjustable pulley to set the angle of pull, from 0° to 90°, while the working table remains horizontal. The horizontal orientation is suited for seal testing of filled containers, and can also be used for tapes and other materials.
An integrated limit switch automatically stops the motion of the following test frames when the working table has reached its end of travel: F105, F305, F505, F755*, F1505*, ESM303, ESM1500(S)LC*, ESM750(S)LC*. AC1087 adapter required
Made in the USA and comes with a three year limited manufacturer’s warranty.
Shop for G1109 90° Peel Fixture at MRM Metrology.
Buy G1109 Peel Fixture now for the best price in Canada.
| ○ Maintains 90° angle between the table and the direction of pull |
| ○ Optional adjustable angle mount tilts the fixture up to ±30° |
| ○ Optional adjustable angle adapter with pulley, 0° to 90°, while preserving horizontal table orientation (max. force: 30 lbF [150 N]) |
| ○ Large working area with threaded mounting holes |
| ○ Conforms to ASTM D6862, D3330, and D903 |
| Maximum Force | 500 N , 100 lbf |
| Maximum Table Travel | 210 mm , 8.2″ |
| Weight | 2.7 kg , 6.0 lb |
| HS Code | 9024800000 |
| ECCN | EAR99 |
| Country of Origin | USA |
G1109 Peel Fixture
AC1078 Optional Adjustable Angle Fixture
AC1079 Optional Adjustable Angle Fixture
| (1) G1109 fixture |
| (1) Limit switch cable |
| (1) Crosshead bracket |
| (1) G1078 miniature bollard grip |
| (1) Test stand mounting adapter |
| (1) Mounting hardware |
