| Force Gauge | |
| ○ Calculates peak tension and compression values | |
| ○ 3 selectable units of measurement: N, lbf, kgf | |
| ○ Ultra-compact, ergonomic housing | |
| ○ Configurable default measurement unit and mode | |
| ○ 500 Hz sampling rate | |
| ○ Large, backlit graphic display with auto-dimming | |
| ○ Powered by 9V battery or available AC adapter | |
| ○ Reversible housing for alternate load cell orientation | |
| Test Stand | |
| ○ Mounting holes for bench mounting modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting | |
| ○ Removable base plate with 25 #10-32 threaded holes for fixture mounting | |
| ○ Competitor force gauge mounting kits are available |
| Force Gauge | |
| Capacity x Resolution | 1000 x 1 N , 200 x 0.1 lbf , 100 x 0.1 kgf |
| Accuracy | ± 0.5% of Full Scale |
| Sampling Rate | 500 hZ |
| Power | AC or 9V non-rechargeable battery, with multi-step low battery indicator |
| Backlight On | Up to 24 hours |
| Backlight Off | Up to 92 hours |
| Units of Measurement | N, lbf, kgf |
| Safe Overload Protection | 200% of Full Scale (Display shows “OVER” at 110% and above) |
| Weight | 0.41 kg , 0.9 lb |
| Included Items | 9V battery, quick-start guide, resource CD, certificate of conformance |
| Environmental Requirements | (40 to 100)°F, max. 96% humidity, non-condensating |
| Manufacturer’s Warranty | Three years (See individual statement for further details) |
| Test Stand | |
| Maximum Force | 200 lbf , 1 kN |
| Maximum Travel | 13″ , 330 mm |
| Travel Rate | 0.05″ , 1.27 mm hand-wheel revolution |
| Manufacturer’s Warranty | Three years (See individual statement for further details) |
| Force Gauge | Load Cell Thread |
| M2-2 – M2-200 | #10-32 UNF |
| Test Stand | in [mm] |
| Included Items for Force Gauge | |
| AC1030 | AC Power Adapter |
| 08-1026 | Rechargeable Battery (Installed in Force Gauge) |
| Optional Items for Force Gauge | |
| AC1030 | AC adapter, 110V US |
| AC1031 | AC adapter, 220V Euro |
| AC1032 | AC adapter, 220V UK |
| AC1035 | AC adapter, 220V Australian |
| 12-1049 | Carrying Case |
| AC1052 | Mounting Plate Kit |
| G1038 | Medium Hook, #10-32M (requires G1039) |
| G1039 | Coupling, #10-32F/F |
| G1029 | Flat Head, #10-32F |
| G1026 | Cone, #10-32F |
| G1025 | Chisel Point, #10-32F |
| G1027 | V-groove, #10-32F |
| G1024 | Extension Rod, 5″, #10-32F |
| 23-1031-2 | Attachments Kit (G1024 through G1038) |
| A wide range of test stands and gripping fixtures |
| Attachments: Available individually or as a kit. Select from a hook, flat, cone, chisel, v-groove and extension rod |
| AC Adapters: Select from 110V US, 220V Euro, 220V UK or 220V Australian |
| Carrying Case: Cushioned hard plastic carrying case provides storage space for the gauge, AC adapter and attachments |
| Mounting Plate: For mounting Mark-10 gauges to a fixture or testing system. Includes mounting hardware. Note: Gauge mounting plates are included with Mark-10 test stands |
| Included Items for Test Stand | |
| G1024 | 2” Extension Rod |
| G1028 | Small Hook |
| G1038 | Medium Hook |
| G1009 | 2” Diameter Compression Plate |
| G1039 | Coupling, #10-32F/F |
| G1030 | Thread Adapter, 5/16-18M to #10-32F |
| Allen Wrench Set | |
| Hand-wheel | |
| 4 Thumb Screw for Force Gauge |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL ES30_M2-200 when requesting calibration services from MRM Metrology.
Calibration and Repair Services

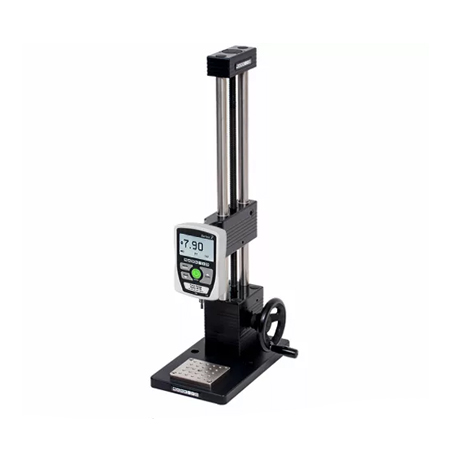

MRM provides Calibration and Repair Services for the ES30_M2-200 Mark-10 Test Stand with Force Gauge
For a quote, please email us at [email protected]
