EkM5-200 Myometer Kit
EkM5-200 Myometer Kit

EKM5-200 Mark-10 Myometer Kit 200 lbf / 3200 ozf / 100 kgf / 1000 N / 1 kN

FREE ISO 17025 Calibration Certificate
FREE shipping in Ontario.

EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbf / 1,000 N range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals. Series EKM5

Made in the USA and comes with a three year manufacturer’s warranty.
Shop for EKM5-200 Myometer Kit at MRM Metrology, and save.
Buy EKM5-200 Myometer Kit now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
ISO 17025


M5-200

SKU: EKM5-200 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Measures real time, average, and peak pull and push forces
○ 200 lbf / 1,000 N Force capacity
○ Sampling rate of 7,000 Hz
○ USB, RS-232, and analog outputs
○ High / low limit indicators, for pass / fail and minimum force testing
○ 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software
○ Force gauge is compatible with other Mark-10 grips and attachments
Capacity x Resolution 200 x 0.05 lbf / 3200 x 1 ozf / 100 x 0.02 kgf / 1000 x 0.2 N / 1 x 0.0002 kN
Accuracy ± 0.1% of Full Scale
Sampling Rate 7,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Backlight On Up to 7 hours of continuous use
Backlight Off Up to 24 hours of continuous use
USB / RS-232 Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control
Mitutoyo (Digimatic) Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog ±1 VDC, ± 0.25% of full scale at capacity
General Purpose Three open drain outputs, one input
Set Points Three open drain lines
Safe Overload 200% of full scale (display shows “OVER” at 110% and above)
Warranty Three years limited manufacturer’s warranty

Model Load Cell Thread
M5-200 – M5-500 5/16-18M UNC

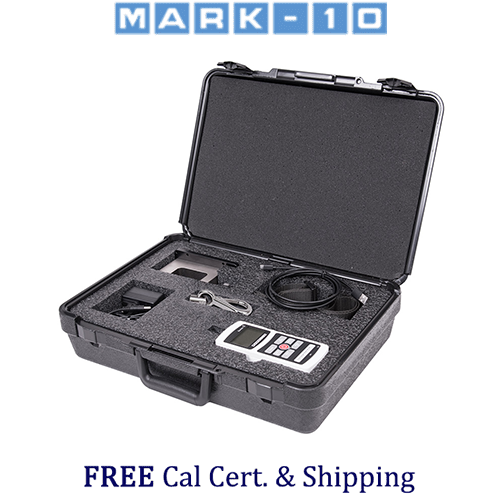

Included Items
M5-200 Advanced force gauge
Carrying case
Tabletop mounting kit for force gauge, for vertical or horizontal orientations
Adjustable length looped strap
G1107 Snap hook
AC1030 AC adapter/charger
MESUR® Lite data collection software
09-1165 USB cable
Optional Items
15-1004 MESUR™gauge software

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL EKM5-200 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
EKM5-200 Mark-10 Series EKM5

For a quote, please email us at  [email protected]
