Product Description
- Features
- Specifications
- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Designed to calibrate dial indicators, dial test indicators and other electronic comparison gage heads with a stroke of up to 100 mm / 4″ |
| ○ Directly inspects an indicator with a stroke of up to 100 mm / 4″ |
| ○ The dial test indicator, bore gage and lever-type inductive head can be inspected with optional accessories |
| ○ Adjustment of the measurement position is easily accomplished due to semi-automatic measurement and fully automatic measurement functions |
| ○ Creates and prints out a simple inspection certificate |
| ○ Saves inspection results as a CSV file for analysis by software |
| ○ Each measuring block is made of zirconia-based and is free from deterioration dimensional changes over time |
| Measuring Range | 100 mm / 4″ |
| Resolution | 0.01 µm /0.4 µin |
| Accuracy | ± (0.1+0.4L/100) µm in vertical position (at 20°C) ±(0.15+0.6L/100) µm in lateral position L = measuring length (mm) |
| Drive Method | Motor direct drive |
| Measuring Unit | “STVC-4Z” linear encoder |
| Thermal Expansion Coefficient | 0.4 ppm / °C |
| Measurement Method | Semi / Full automatic* |
| Operating Temperature Range | 20°C ± 0.5°C |
| Power Supply | 100 – 240VAC ±10%, 50/60 Hz |
| Manufacturer’s Warranty | One (1) year limited manufacturer’s warranty |
* Automatic measurement requires the indicator’s connection cable.
Additionally, some form of indicator, along with a connecting machine (the optional accessory for indicator as a Digimatic power-supply unit on EF counter), will be needed.

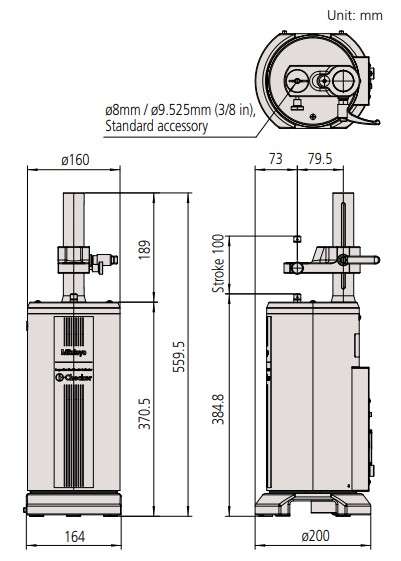

| Dimensions (W x D x H) | 116 x 205.5 x 559.5 mm |
| Mass | 20 kg / 44.1 lbs |
| Optional Items | |
| 02ASK000 | ø6 mm Stem Test indicator attachment set |
| 02ASK180 | ø8 mm Stem Test indicator attachment set |
| 02ASK370 | ø6 mm Stem Test indicator holder |
| 02ASK380 | ø8 mm Stem Test indicator holder |
| 02ASU162 | CG accessory set (type C) for bore gauges* |
| 21CZB128 | ø6 mm dovetail grooved stem |
| 21CZB129 | ø8 mm dovetail grooved stem |
| 02ASK040 | ø6 mm Stem bush |
| 02ASJ856 | ø8 mm Stem bush |
| 02ASK150 | Stem bush ø8 mm, short |
| 02ASL150 | Stem bush ø10, short |
| 02ASK050 | Bush ø9.5 (Requires 02ASK070) |
| 02ASK060 | ø12 mm Stem bush |
| 02ASK070 | ø15 mm Stem bush |
| 02ASK080 | ø20 mm Stem bush |
| 02ASK710 | ø28 mm Stem bush |
| 02ASK090 | 3/8” Stem bush |
| 02ASK130 | Stem bush case |
| 02ASK730 | Reflector |
| 937179T | Foot switch |
* Not compatible with IC1000 models
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

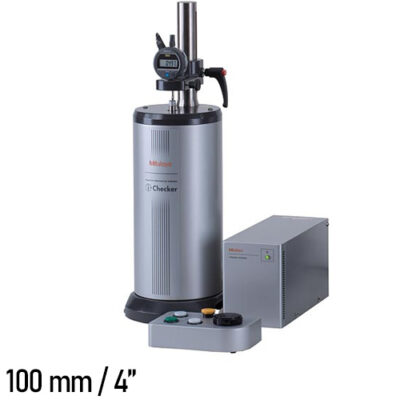

64PKA148 Mitutoyo i-Checker
For a quote, please email us at [email protected]
