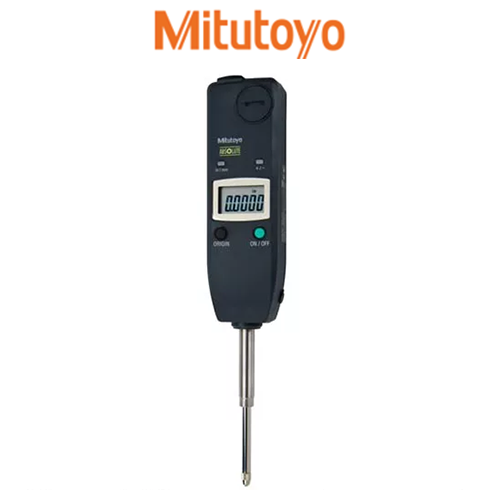

575-122 Mitutoyo Digimatic Indicator 25.4mm/1″

The 575-122 ABSOLUTE Digimatic Indicator is slim in appearance and has a simple design. Large LCD and simple key operation. SPC data output capability. Ideal for installation into measuring devices because of its compact design and long battery life.

It comes with a one-year limited manufacturer’s warranty.
Shop for 575-122 Indicator at MRM Metrology, and use CAL 575-122 when ordering calibration services.

Other Models

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Slim type digital indicator
○ Large LCD and simple key operation
○ After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life
○ The origin is remembered even after power-off
○ Ideal for installation into measuring devices because of it’s compact design and long battery life
○ Always displays the spindle “Absolute Position” from the origin at power-on
○ Unlimited response speed eliminates over-speed errors
○ Flat back type only no option for backs
○ SPC data output
○ Origin-set, Zero-set, Counting direction switching
○ Power ON/OFF, Data output, inch/mm conversion
○ Alarm: Low voltage, Counting value composition error, Over-flow error

Range (0 to 25.4 mm) [0 to 1″]
Resolution 0.01 mm [0.0005″]
Accuracy ± 0.0008″
Stem Diameter 5/16″
Measuring Force 1.8N or less
Remarks M2.5 x 0.45 Thread (ISO/JIS type)
Display LCD
Max. Response Speed Unlimited
Battery SR44 (1 pc.) [Part No. 938882]
Battery Life Approx. 20,000 hours under normal use
Protection Level IP42
Length Standard ABSOLUTE electrostatic capacitance type linear encoder


905338 SPC cable (40” / 1m)
905409 SPC cable (80” / 2m)
540774 Lifting cable
938882 Battery, SR44

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
575-122 Mitutoyo Indicator, Digimatic

For a quote, please email us at  Service@MRMmetrology.com
