575-123 Mitutoyo Indicator

575-123 Mitutoyo Digimatic Indicator, 25.4 mm / 1″

The 575-123 Mitutoyo ABSOLUTE ID-U Digital Indicator with a slim, simple design provides up to a 25.4mm/1” range that is easy to use and read. Large push buttons provide direct, easy access to all of the indicator’s functions, and readings are shown on a large 8mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements. The indicator’s 23mm depth and approximately 20,000-hour battery life make it suitable for installation in measuring devices.

It comes with a one-year manufacturer’s warranty.
Shop for 575-123 Digital Indicator at MRM Metrology, and save.
Buy 575-123 Indicator now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models
SKU: 575-123 Categories: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Slim type digital indicator
○ Large LCD and simple key operation
○ After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life
○ The origin is remembered even after power-off
○ Ideal for installation into measuring devices because of it’s compact design and long battery life
○ Always displays the spindle “Absolute Position” from the origin at power-on
○ Unlimited response speed eliminates over-speed errors
○ Flat back type only no option for backs
○ SPC data output
○ Origin-set, Zeroset, Counting direction switching
○ Power ON/OFF, Data output, inch/mm conversion
○ Alarm: Low voltage, Counting value composition error, Over-flow error

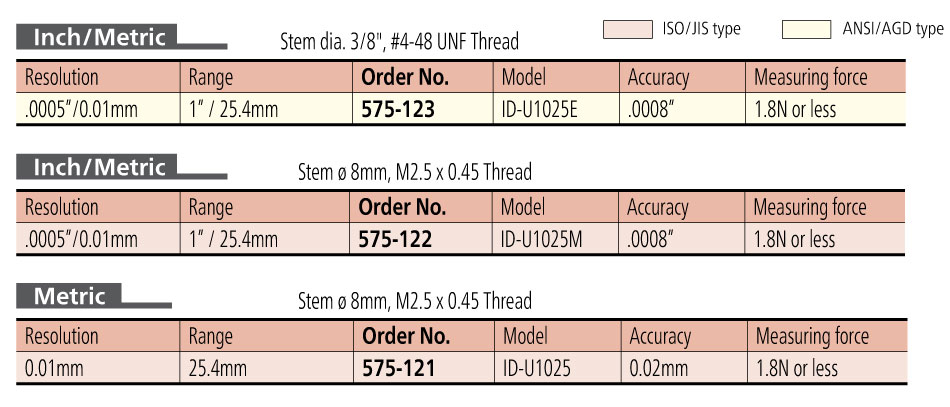

Range (0 to 25.4) mm / (0 to 1)”
Resolution 0.01 mm / 0.0005″
Accuracy ± 0.0008″
Stem Diameter 3/8″
Measuring Force 1.8N or less
Remarks No.4-48 UNF Thread ANSI/AGD type
Display LCD
Max. Response Speed Unlimited
Battery SR44 (1 pc.), 938882
Battery Life Approx. 20,000 hours under normal use
Protection Level IP42
Length Standard ABSOLUTE electrostatic capacitance type linear encoder


905338 SPC cable (40” / 1m)
905409 SPC cable (80” / 2m)
540774 Lifting cable
938882 Battery, SR44

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 575-123 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
575-123 Mitutoyo Indicator, Digimatic

For a quote, please email us at  [email protected]
