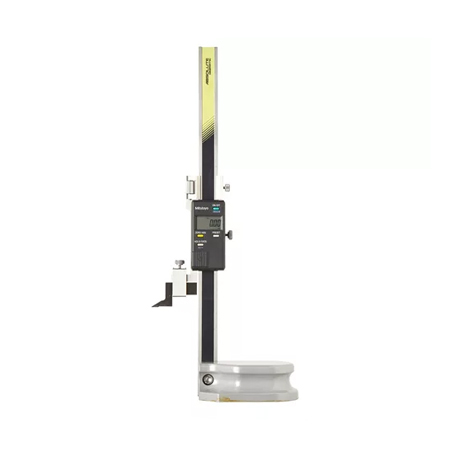

570-248 Mitutoyo Height Gauge Digimatic

570-248 Mitutoyo Digimatic Height Gauge, 1000 mm / 40″

Original price was: CAD 5,366.00.Current price is: CAD 4,185.00.

The 570-248 Digimatic Height Gauge uses a built-in ABSOLUTE linear encoder which eliminates the need to set the reference point during every power-on. The hand-operated slider with fine adjustment carriage offers smooth movement and precise measurement. Includes a carbide-tipped long scriber that provides highly durable and extremely accurate marks on your workpiece.

It comes with a one-year manufacturer’s warranty.
Shop for 570-248 Digital Height Gauge at MRM Metrology, and save.
Buy 570-248 Height Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Absolute
SPC


Other Models

SKU: 570-248 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Fine adjustment carriage for smooth movement
○ SPC output function with optional water-resistant SPC cable provides quick and easy data management in real time
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the gauge is powered on; overspeed errors are also eliminated
○ Display features large LCD characters (11 mm in height) for easier measurement reading and reduces eye strain
○ Large function buttons on display are positioned for easy operation
○ Durable, rigid construction ensures repeatable measurements over a longer lifespan
○ Base is shaped to provide a secure grip
○ Functions include Origin setting, ABS/INC switching, Presetting, -/+ switching, Data hold, Data output and inch/mm conversion
○ Alarm: Low Voltage, Counting Value Composition Error

Range (0 to 1,000) mm , (0 to 40)”
Resolution 0.01 mm , 0.0005″
Accuracy ± 0.003″
Mass 16.8 kg
Fine Feed 0.24″
SPC Output Yes
Display LCD
Length Standard ABSOLUTE electrostatic capacitance type linear encoder
Max. Response Speed Unlimited
Warranty One-year limited manufacturer’s warranty


Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 5,000 hours under normal use
900173 Carbide-tipped scriber
901338 Scriber clamp
Optional Items
905338 SPC cable (40” / 1 m)
905409 SPC cable (80” / 2 m)
953638 50 mm Holding bar for test indicator
953639 2” Holding Bar for test indicator
902053 Swivel clamp used with holding bar (metric)
900322 Swivel clamp used with holding bar (inch)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 570-248 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
570-248 Mitutoyo Digimatic Height Gauge

For a quote, please email us at  [email protected]
