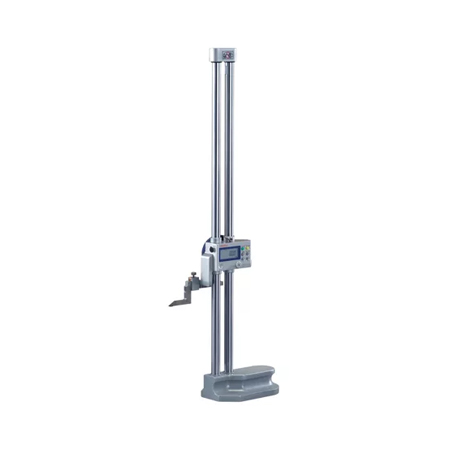

192-664-10 Mitutoyo Height Gauge Digimatic

192-664-10 Mitutoyo Digimatic Height Gauge, 600 mm

The 192-664-10 Digimatic Multi-Function Height Gauge offers the use of an optional signal probe to achieve highly accurate height and external dimensions with improved ease of operation and enhanced functionality.

The highly versatile multi-function digital height gauge provides precise height measurements combined with an optional bi-direction touch probe signal to measure step, inside width and outside width. The included carbide-tipped long scriber is extremely durable and provides highly accurate marks on your workpiece. Measurements are shown on an easy-to-read LCD display.

It comes with a one-year manufacturer’s warranty.
Shop for 192-664-10 Digimatic Height Gauge at MRM Metrology, and save.
Buy 192-664-10 Height Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC
Other Models

SKU: 192-664-10 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ An optional bi-directional touch signal probe is available for to quick and accurate measurement of steps, and inside and outside widths
○ Display features large LCD characters (11mm in height) for easier measurement reading and to reduce eye strain
○ Large function buttons on display are positioned for easy operation
○ Inclined slider handle improves slider ergonomics
○ Rigid construction ensures repeatable measurements
○ Base is shaped to provide a secure grip
○ Coarse/fine feeding switch for fast adjustments and precise measurements
○ Functions include Zero setting, ABD/INC switching, 2 Presets, Probe tip diameter compensation, -/+ switching, Power On/Off, Data hold, Data output
○ Alarm: Low Voltage, Counting Value Composition Error

Range (0 to 600) mm
Resolution 0.01 mm and 0.005 mm Switchable
Accuracy ± 0.04 mm
Mass 8.3 kg
SPC Output Yes
Max. Response Speed 500 mm/s
Display LCD
Manufacturer’s Warranty 1 year limited manufacturer’s warranty


INCLUDED ITEMS
Battery (938882) SR44 (1 pc)
Battery Life Approx. 2,000 hours under normal use
905200 Carbide-tipped scriber
05GZA033 Scriber clamp
OPTIONAL ITEMS
192-007 Bi-directional touch-signal probe (metric)
192-008 Bi-directional touch-signal probe (inch)
900306 4″ Holding Bar for test indicator
900321 Swivel clamp used with holding bar (metric)
900322 Swivel clamp used with holding bar (inch)
905338 SPC cable (40” / 1m)
905409 SPC cable (80” / 2m)
905691 SPC cable (L-shape, 40” / 1m)
905692 SPC cable (L-shape, 80” / 2m)
953639 2″ Holding Bar for test indicator

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 192-664-10 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
192-664-10 Mitutoyo Digimatic Height Gauge

For a quote, please email us at  [email protected]
