192-631-10 Mitutoyo Height Gauge

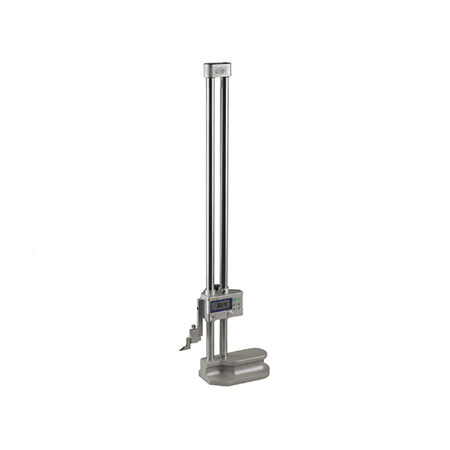

192-631-10 Mitutoyo Digimatic Height Gauge, 450 mm / 18″

CAD 2,349.00

The 192-631-10 Digimatic Height Gauge achieves highly accurate height measurements with improved ease of operation. Measurements are shown on an easy-to-read LCD display. The multi-function digital height gauge provides precise measurement in a unit that is easy to use.

This height gauge has a rigid, double-column structure which ensures high measuring accuracy and repeatability. The included carbide-tipped long scriber is highly durable and provides accurate marks on your workpiece.

It comes with a one-year manufacturer’s warranty.
Shop for 192-631-10 Digimatic Height Gauge at MRM Metrology, and save.
Buy 192-631-10 Height Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC


Other Models

SKU: 192-631-10 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

â—‹ Display features large LCD characters (11mm in height) for easier measurement reading and reduces eye strain
â—‹ Large function buttons on display are positioned for easy operation
â—‹ Inclined slider handle improves slider ergonomics
â—‹ Base is shaped to provide a secure grip
â—‹ Coarse/fine feeding switch for fast adjustments and precise measurements
â—‹ Functions include Zero setting, ABS/INC switching, 2 Presets, Probe tip diameter compensation, -/+ switching, Power On/Off, Data hold, Data output and inch/mm conversion
â—‹ Alarm: Low Voltage, Counting Value Composition Error

Range (0 to 450) mm , (0 to 18)”
Resolution 0.01 , 0.005 mm / 0.0005″ , 0.0002″
Accuracy ± 0.05 mm , ± 0.002″
Mass 7.5 kg
SPC Output Yes
Selectable Resolution Yes
Max. Response Speed 500 mm/s
Display LCD
Manufacturer’s Warranty One year limited manufacturer’s warranty


Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 2,000 hours under normal use
900258 Carbide-tipped scriber
901385 Scriber clamp
Optional Items
953638 50 mm Holding Bar for test indicator
900209 100 mm Holding Bar for test indicator
953639 2″ Holding Bar for test indicator
900306 4″ Holding Bar for test indicator
900322 Swivel clamp used with holding bar (inch)
905338 1m SPC cable (CD type)
905409 2m SPC cable (CD type)
905691 CD/Connecting cable L-Type 1m RIG
905692 CD/Connecting cable L-Type 2m RIG

â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL192-631-10 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
192-631-10 Mitutoyo Digimatic Height Gauge

For a quote, please email us at  [email protected]
