DISCONTINUED ** Replaced with 518-361-13 **

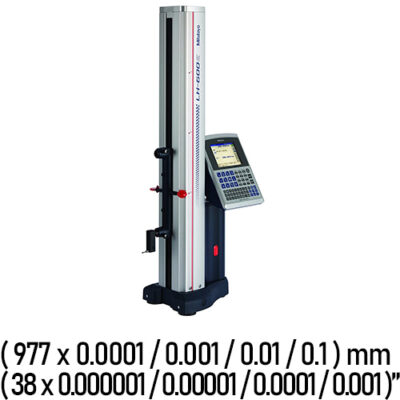

The 518-352A-21 Mitutoyo LH-600EG Linear Height Measurement System offers a large range of features necessary to achieve highly accurate and repeatable height measurements. Measurements are shown on an easy-to-read, full-color 5.7″ TFT LCD display.
It comes with a one-year manufacturer’s warranty.
Shop for 518-352A-21 Linear Height Gauge at MRM Metrology, and save.
Buy 518-352A-21 now for the best price in Canada.
Email us for the lowest price.
Click on [email protected] to request a quotation.
| ○ Available with power grip for easy maneuverability |
| ○ Gauge is provided with various types of probes and interchangeable styli flexibly compatible with complicated workpiece profiles and various measurement features |
| ○ Floating method is full/semi-floating with built-in air compressor |
| ○ Icon-type, one-key operation for running semi-automatic measurements |
| ○ Allows data entry from a Digimatic tool, such as a digital indicator when testing perpendicularity |
| ○ RS-232/USB data port offers the option of data output |
| ○ Perpendicularity (frontal) of 5μm and straightness of 4μm are guaranteed |
| ○ Runs pre-learned part programs automatically |
| ○ Operates using an AC adapter and rechargeable Ni-MH battery |
| Range | (0 to 977) mm , (0 to 38)” |
| Resolution (switchable) | 0.000001, 0.00001, 0.0001, 0.001″ ; 0.0001, 0.001, 0.01, 0.1 mm |
| Accuracy | ± 1.1 + 0.6L/600µm , 43 + Lµin |
| Repeatability Plane | 0.4µm , 0.000015″ |
| Repeatability Bore | 0.9µm , 0.000035″ |
| Perpendicularity | 5µm , 0.0002″ |
| Straightness | 4µm , 0.0002″ |
| Drive Method | Motor Drive |
| Measuring Force | 1 N |
| Balance Method | Counter balance |
| Main Unit Floating Method | Full / semi-floating with air |
| Air Source | Built-in air compressor |
| Language for Display | English, German, French, Spanish, Italian, Japanese |
| Max Number of Programs | 50 |
| Max Data Storage | 60000 |
| Power Supply | AC Adapter , Battery (Ni-MH) |
| Power Consumption | 43 |
| Display | 5.7″ TFT LCD (color) |
| SPC Output | Yes |
| Slider Stroke | 600 mm , 24″ |
| Mass | 24.5 kg |
| Manufacturer’s Warranty | One-year limited manufacturer’s warranty |
| Included Items | |
| 12AAF634 | ø5 Eccentric probe |
| 12AAA715 | Probe diameter calibration block |
| 223587 | Clear Cover |
| 510434 | Conveying handle |
| 12AAF712 | Battery |
| Battery Life | Approx. 5 hours (compressor duty cycle 25% max) |
| 357651 | AC Power Adapter |
| 02ZAA010 | Power Cable |
| Optional Items | |
| 12AAF712 | Battery pack |
| 12AAA807 | RS-232C Cable 2m ; 80″ |
| 12AAA808 | RS-232C Cable 4m ; 160″ |
| 12AAA802 | Printer, Thermal Paper (518 Series) |
| 12AAA804 | Cable for letter size printer 2m |
| 12AAN049 | Thermal printer |
VIDEOS
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 518-352A-21 when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
518-352A-21 Mitutoyo Linear Height Gauge
For a quote, please email us at [email protected]
