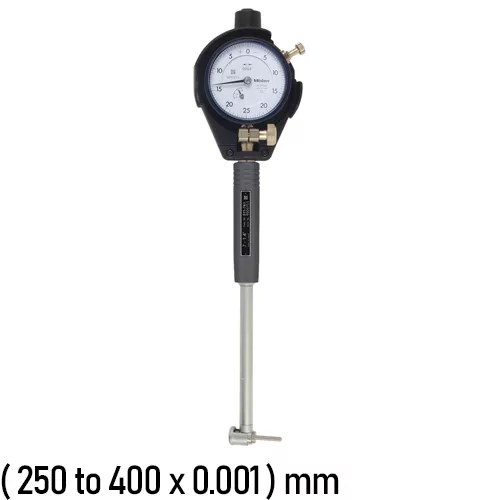

511-726 Mitutoyo Bore Gauge

511-726 Mitutoyo Bore Gauge, Standard Type

The 511-726 Dial Bore Gauge comes with interchangeable anvils and necessary accessories to perform inside diameter measurements with close tolerances. Carbide-tipped contact points for durability. Optional extension rods can be attached for measuring deep holes.

It comes with a one-year limited manufacturer’s warranty.
Shop for 511-726 Bore Gauge at MRM Metrology, and use CAL 511-726 when ordering calibration services.

Other Models
SKU: 511-726 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Carbide-tipped contact points for durability
○ The dial indicator is fully protected by a rugged cover
○ Optional extension rods can be attached for measuring deep holes
○ With 2109SB-10

Range (250 to 400) mm
Graduation 0.001 mm
Accuracy 0.002 mm
Indication Stability 0.001 mm
No of Anvils 5 (75 mm sub anvil)
No of Spacers 7
Gauge Stem Ø 8 mm


Optional Items
953557 125 mm / 4.92” Extension rod
952361 250 mm / 9.84” Extension rod
953558 500 mm / 19.69” Extension rod
953559 750 mm / 29.53” Extension rod
953560 1000 mm / 39.37” Extension rod

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
511-726 Mitutoyo Bore Gauge, Standard Type

For a quote, please email us at  [email protected]
