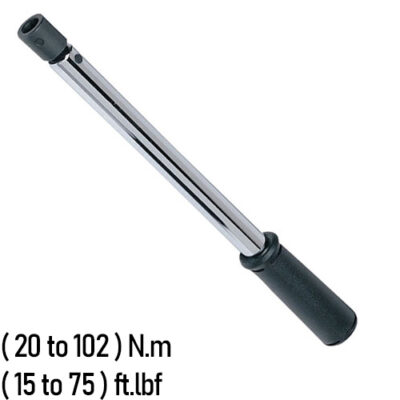

CDI Torque Wrench Single Setting

50T-I CDI Torque Wrench, Single Setting

Pre-set Torque Wrenches are designed for automotive, nuclear, and industrial markets in addition to military installations throughout the world. Pre Set Torque wrenches are designed for use on production lines and other applications where a specific torque is required for repetitive operations. The design fabrication and materials used have been developed in coordination with major manufactures in actual production use.


Range (20 to 102) N.m / (15 to 75) ft.lbf
Graduation
Accuracy ± 4% of indicated value, in direction of torque indicator, from 20% to 100% of full scale
Other Models

SKU: 50T-I Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Other Models
  • Downloads
  • Calibration

○ Factory Pre-Set models are set at the factory to the customer specific torque setting
○ Please specify desired torque setting when order is placed
○ Featuring a durable, non slip cushion grip
○ Uses universal round shank interchangeable heads
○ Audible click and feel impulse torque mechanism
○ Tamper proof torque setting for production line use
○ Meet or exceeds ASME B107.300-2010

Range (15 to 75) ft.lbf
Nm Range (20 to 102) N.m
Accuracy ± 4% of indicated value, in direction of torque indicator, from 20% to 100% of full scale
Shank Size J

Product Code Code Factory Pre-Set English Range Nm Range Shank Size
5T-I 5T-I-SET (10 to 50) in.lbf (1.1 to 5.6) N.m J
10T-I 10T-I-SET (50 to 250) in.lbf (5.6 to 28) N.m J
10ST-I 10ST-I-SET (60 to 300) in.lbf (6.8 to 34) N.m J
50T-I 50T-I-SET (15 to 75) ft.lbf (20 to 102) N.m J
100T-I 100T-I-SET (30 to 150) ft.lbf (41 to 203) N.m Y
200T-I 200T-I-SET (40 to 200) ft.lbf (54 to 271) N.m Y
300T-I 300T-I-SET (100 to 300) ft.lbf (135 to 406) N.m X
300T-I-48IXL* (100 to 300) ft.lbf (135 to 406) N.m X
600T-I 600T-I-SET (120 to 600) ft.lbf (162 to 814) N.m Z

* Extre length is added to the front of the wrench. Thtis allows lower force to be applied by the operator to achieve the same torque range as the 300T-I.


A x B x C x D (11 x 0.68 x 0.96 x 1.4)”
Weight 1.4 lbs.

Product Code Code Factory Pre-Set English Range Nm Range Shank Size
5T-I 5T-I-SET (10 to 50) in.lbf (1.1 to 5.6) N.m J
10T-I 10T-I-SET (50 to 250) in.lbf (5.6 to 28) N.m J
10ST-I 10ST-I-SET (60 to 300) in.lbf (6.8 to 34) N.m J
50T-I 50T-I-SET (15 to 75) ft.lbf (20 to 102) N.m J
100T-I 100T-I-SET (30 to 150) ft.lbf (41 to 203) N.m Y
200T-I 200T-I-SET (40 to 200) ft.lbf (54 to 271) N.m Y
300T-I 300T-I-SET (100 to 300) ft.lbf (135 to 406) N.m X
300T-I-48IXL* (100 to 300) ft.lbf (135 to 406) N.m X
600T-I 600T-I-SET (120 to 600) ft.lbf (162 to 814) N.m Z

* Extre length is added to the front of the wrench. Thtis allows lower force to be applied by the operator to achieve the same torque range as the 300T-I.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
50T-I CDI Torque Wrench, Single Setting

For a quote, please email us at  [email protected]
