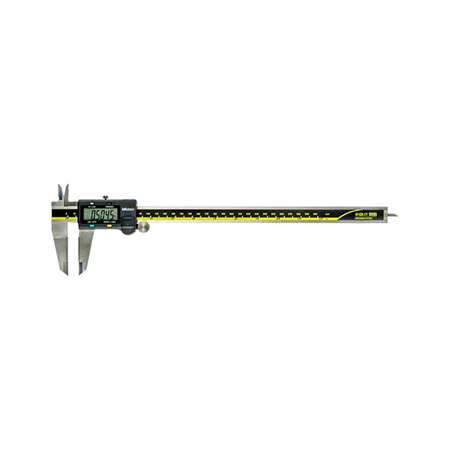

500-165-30 Mitutoyo Digimatic Caliper

5.00 out of 5 based on 1 customer rating
(1 customer review)

The 500-165-30 ABSOLUTE Digital Caliper delivers accurate, repeatable outside dimension, inside dimension, depth and step measurements with accuracy and unrestricted speed. The caliper’s slide and jaws are constructed of hardened stainless steel. The impact-resistant, easy-to-ready LCD display is highly durable and provides large character height (9.0 mm in height) which improves readability.

It comes with one year manufacturer’s warranty.
Shop for 500-165-30 at MRM Metrology and use CAL 500-165-30 when ordering calibration services.

Other Models

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
○ Stainless steel construction protects caliper components and ensures accurate performance for longer duration
○ Functions include Origin Set, Zero-Setting and inch/mm conversion
○ Alarm: Low Voltage, counting value composition error
○ Thumb roller included
○ Supplied in fitted plastic case
Range (0 to 300) mm / (0 to 12)”
Resolution 0.01 mm / 0.0005″
Accuracy ± 0.0015″
Repeatability 0.01 mm / 0.0005”
Display LCD
Length Standard ABSOLUTE electrostatic capacitance type linear encoder
Max. Response Speed Unlimited
Remarks Carbide-tipped jaws for OD measurement
Manufacturer’s Warranty 1 year limited manufacturer’s warranty

Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 3.5 years under normal use
Optional Items
959149 SPC cable with data switch (1m / 40”)
959150 SPC cable with data switch (2m / 80”)
959143 Data hold unit

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
500-165-30 Mitutoyo Digimatic Caliper

For a quote, please email us at  [email protected]
