| ○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated |
| ○ Stainless steel construction protects caliper components and ensures accurate performance for longer duration |
| ○ Functions include Origin Set, Zero-Setting, Data Output and inch/mm conversion |
| ○ Alarm: Low Voltage, counting value composition error |
| ○ Supplied in fitted plastic case |
| Range | (0 to 600) mm , (0 to 24)” |
| Resolution | 0.01 mm , 0.0005″ |
| Accuracy | ± 0.002″ |
| Repeatability | 0.01 mm , 0.0005” |
| Display | LCD |
| Length Standard | ABSOLUTE electrostatic capacitance type linear encoder |
| Max. Response Speed | Unlimited |
| Warranty | One year limited manufacturer’s warranty |
| INCLUDED ITEMS | |
| Battery (938882) | SR44 (1 pc) |
| Battery Life | Approx. 3.5 years under normal use |
| OPTIONAL ITEMS | |
| 959149 | SPC cable with data switch (1m / 40”) |
| 959150 | SPC cable with data switch (2m / 80”) |
| 959143 | Data hold unit |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 500-506-10 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

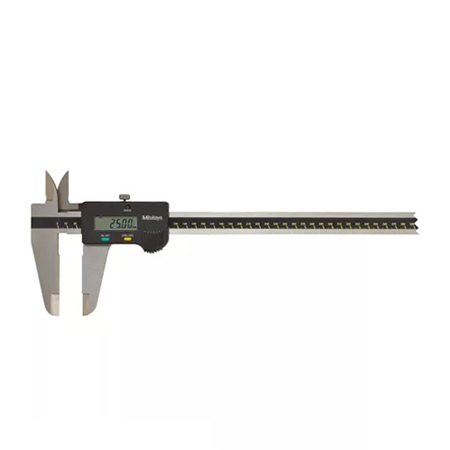

500-506-10 Mitutoyo Digimatic Caliper
For a quote, please email us at [email protected]
