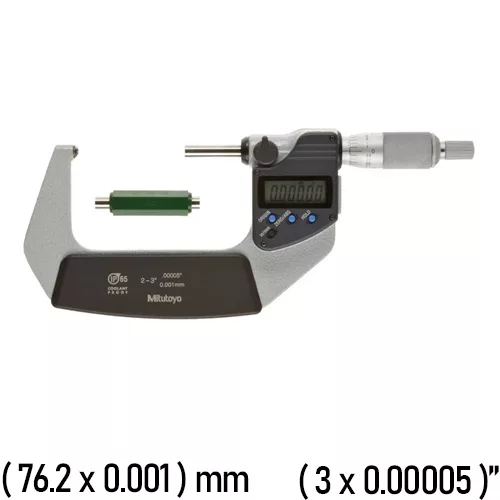

395-353-30 Mitutoyo Spherical Face Micrometer

The 395-353-30 digimatic digital spherical micrometer is available with either a spherical face on the anvil and a flat spindle measuring surface or with spherical measuring surfaces on the anvil and spindle. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

It comes with one year limited manufacturer’s warranty.
Shop for 395-353-30 at MRM Metrology and use CAL 395-353-30 when ordering calibration services.

SPC
Other Models
SKU: 395-353-30 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Available with spherical anvil and flat spindle or with spherical anvil and spherical spindle
○ Designed to measure the wall thickness of various tubing, curved parts and pipe wall thickness
○ Spherical measuring faces are 0.59” in diameter and carbide-tipped for durability
○ IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for most shop floor environments
○ Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
○ SPC output function allows for quick and easy data management in real time
○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock and inch/mm conversion
○ Alarm: Low Voltage, Counting Value Composition Error
○ Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
○ Frame has a non-slip finish for better grip in shop environments
○ Includes a standard bar
○ Supplied in fitted plastic case

Range (50.8 to 76.2) mm / (2 to 3)”
Resolution 0.001 mm / 0.00005″
Accuracy ± 2µm / ± 0.0001″
Mass 470 g
Graduation 0.01mm / 0.0010″
Anvil/Spindle S-F
Flatness 0.3µm / 0.000012″
Remarks D: 0.75″
Manufacturer’s Warranty 1 year limited manufacturer’s warranty

Mitutoyo Micrometer Spherical-Face


INCLUDED ITEMS
Battery (938882) SR44 (1 pc)
Battery Life Approx. 2.4 years under normal use
OPTIONAL ITEMS
05CZA662 SPC cable with data switch (1m/40”)
05CZA663 SPC cable with data switch (2m/80”)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
395-353-30 Mitutoyo Micrometer, Spherical Face

For a quote, please email us at  [email protected]
