| ○ Models with a spherical anvil and flat spindle, and spherical anvil and spherical spindle are available |
| ○ Carbide tips help resist wear on the measuring faces for accurate measurements for an extended period of time |
| ○ SPC output function allows for quick and easy data management in real time |
| ○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock |
| ○ Alarm: Low Voltage, Counting Value Composition Error |
| ○ Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading |
| ○ Frame has a non-slip finish for better grip in shop environments |
| ○ IP65 protection permits use in environments exposed to cutting oil, dust, etc.** |
| ○ Includes a standard bar |
| ○ Supplied in fitted plastic case |
**Anti-corrosion treatment is required after use
| Range | (25.4 to 50.8) mm / (1 to 2)” |
| Resolution | 0.001 mm / 0.00005″ |
| Accuracy | ± 4µm / ± 0.00020″ |
| Graduation | 0.01 mm / 0.0010″ |
| Flatness | 0.6µm / 0.000024″ |
| Parallelism | 3µm or less / 0.00012″ or less |
| Measuring Faces | Carbide tipped |
| Display | LCD |
| Throat Depth | 150 mm / 6″ |
| Anvil/Spindle | S-F |
| IP Rating | IP65 |
| SPC Output | Yes |
| Ratchet/Thimble | Ratchet Stop |
| Manufacturer’s Warranty | 1 year limited manufacturer’s warranty |
| INCLUDED ITEMS | |
| Battery (938882) | SR44 (1 pc) |
| Battery Life | Approx. 2.4 years under normal use |
| OPTIONAL ITEMS | |
| 05CZA662 | SPC cable with data switch (1m / 40”) |
| 05CZA663 | SPC cable with data switch (2m / 80”) |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

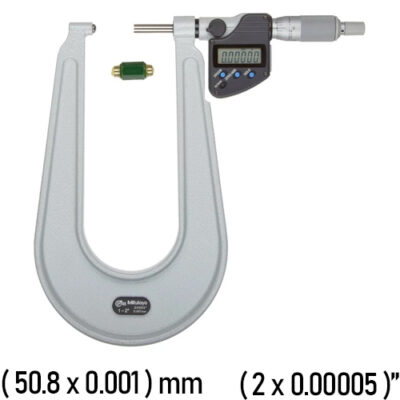

389-362-30 Mitutoyo Sheet Metal Micrometer
For a quote, please email us at [email protected]
