○ 15 Degree and 30 degree measuring points are available |
○ IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for use on most shop floor environments |
○ Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force |
○ SPC output function allows for quick and easy data management in real time |
○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Function Lock and inch/mm conversion |
○ Alarm: Low Voltage, Counting Value Composition Error |
○ Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading |
○ Frame has a non-slip finish for better grip in shop environments |
○ Supplied in fitted plastic case |
Range | (76.2 to 101.6) mm , (3 to 4)” |
Resolution | 0.001 mm , 0.00005″ |
Accuracy | ± 3µm , ± 0.00015″ |
Mass | 565 g |
Contact Point | 15 |
Display | LCD |
Warranty | One year limited manufacturer’s warranty |
Included Items | |
Battery (938882) | SR44 (1 pc) |
Battery Life | Approx. 2.4 years under normal use |
Optional Items | |
938882 | Battery |
05CZA662 | SPC cable with data switch 1 m / 40” |
05CZA663 | SPC cable with data switch 2 m / 80” |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 342-354-30 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

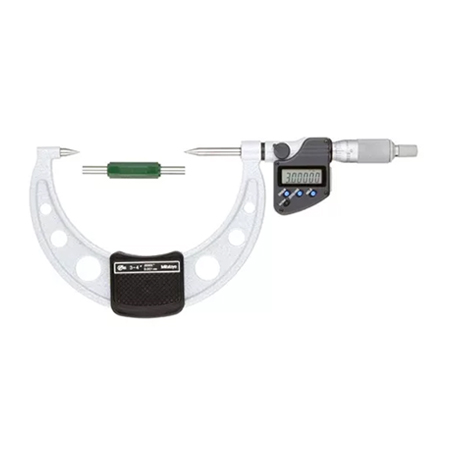

342-354-30 Mitutoyo Point Micrometer
For a quote, please email us at [email protected]
