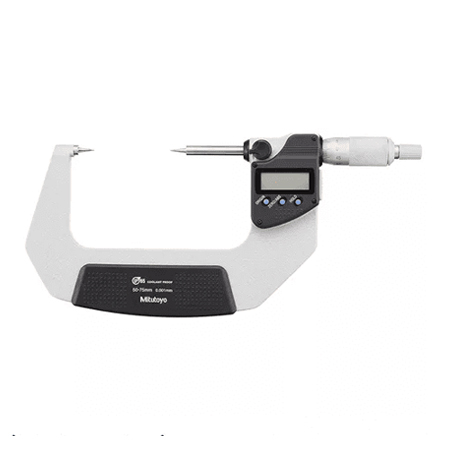

342-253-30 Mitutoyo Point Micrometer (50 to 75) mm

Original price was: CAD 760.00.Current price is: CAD 599.00.

The 342-253-30 Digimatic pointed digital micrometer features 15-degree pointed anvil and spline to measure small grooves on parts or workpieces along with keyways and web thicknesses on drills with superior accuracy. The pointed anvil and spindle contacts are ideal at measuring small, hard-to-reach areas which a normal or reduce-diameter spindle and anvil are unable to access. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.

It comes with a one-year manufacturer’s warranty.
Shop for 342-253-30 Digital Micrometer at MRM Metrology, and save.
Buy 342-253-30 Micrometer now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC


Other Models
SKU: 342-253-30 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ 15 Degree and 30 degree measuring points are available
○ IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for use on most shop floor environments
○ Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
○ SPC output function allows for quick and easy data management in real time
○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Function Lock
○ Alarm: Low Voltage, Counting Value Composition Error
○ Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
○ Frame has a non-slip finish for better grip in shop environments
○ Supplied in fitted plastic case

Range (50 to 75) mm
Resolution 0.001 mm
Accuracy ± 2µm
Mass 625 g
Contact Point 15
Display LCD
Manufacturer’s Warranty 1 year limited manufacturer’s warranty

Mitutoyo Micrometer Point


Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 2.4 years under normal use
Optional Items
938882 Battery
05CZA662 SPC cable with data switch 1 m / 40”
05CZA663 SPC cable with data switch 2 m / 80”

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 342-253-30 when requesting calibration services from MRM Metrology.
