3060A-19 Mitutoyo Indicator with Large Dial Face (0 to 80) mm

The 3060A-19 large dial face dial indicator with lug combines excellent accuracy and reliability with a large, easy-to-read dial face. The stem design provides a long clamping range for use in many different applications. The spindle and stem are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations.

The absence of a through screw hole helps protect the indicator against water and oil permeation. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.

It comes with a one-year manufacturer’s warranty.
Shop for 3060A-19 Dial Indicator at MRM Metrology, and save.
Buy 3060A-19 Indicator now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models
SKU: 3060A-19 Categories: ,

Product Description

  • Features
  • Specifications

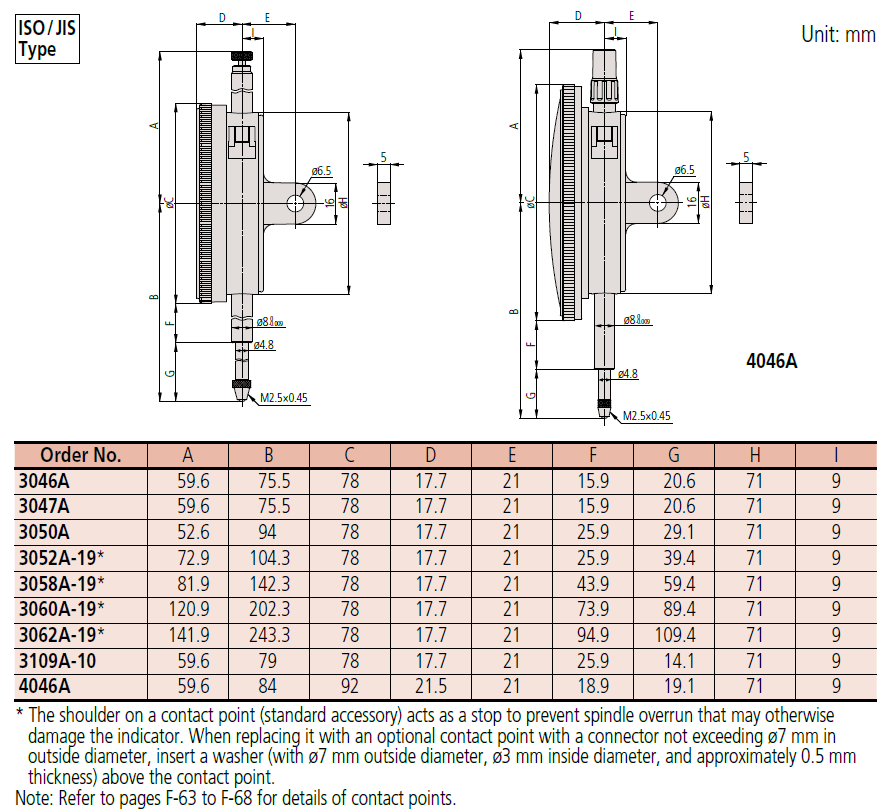

  • Dimensions
  • Accessories
  • Downloads
  • Calibration

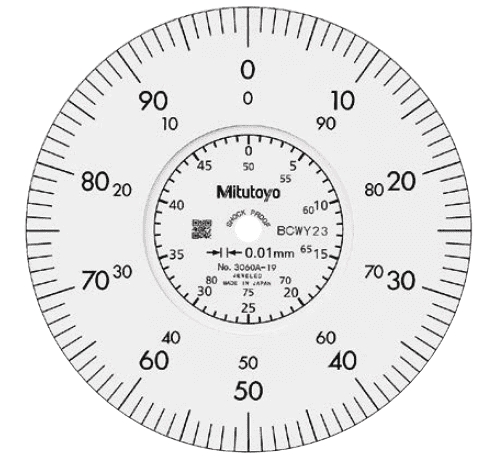

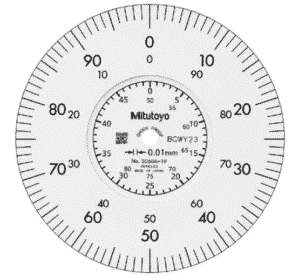

○ Dial indicators with a large-diameter dial face for easy reading
○ Highly durable thanks to its oil- and water-tight design, quenched hardened stainless-steel, carbide contact point, and a grand gear made of wear- and deformation-resistant material
○Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance
○ All types come with limit pins and an outer frame clamp as standard
○ Shockproof type
○ Jeweled bearing type
○ With coaxial revolution counter

Range (0 to 80) mm
Graduation 0.01 mm
Accuracy 1/10 Rev 12µm
  1/2 Rev 17µm
  1 Rev 20
  Measuring Range 45
Repeatability Force 5
Hysteresis 9
Dial Reading ± 0 to 100
Measuring Force 3.0 N or less
Remarks M2.5 x 0.45 Thread
Type Lug
Warranty One-year limited manufacturer’s warranty
Replacement 3060A-19 replaces 3060S-19

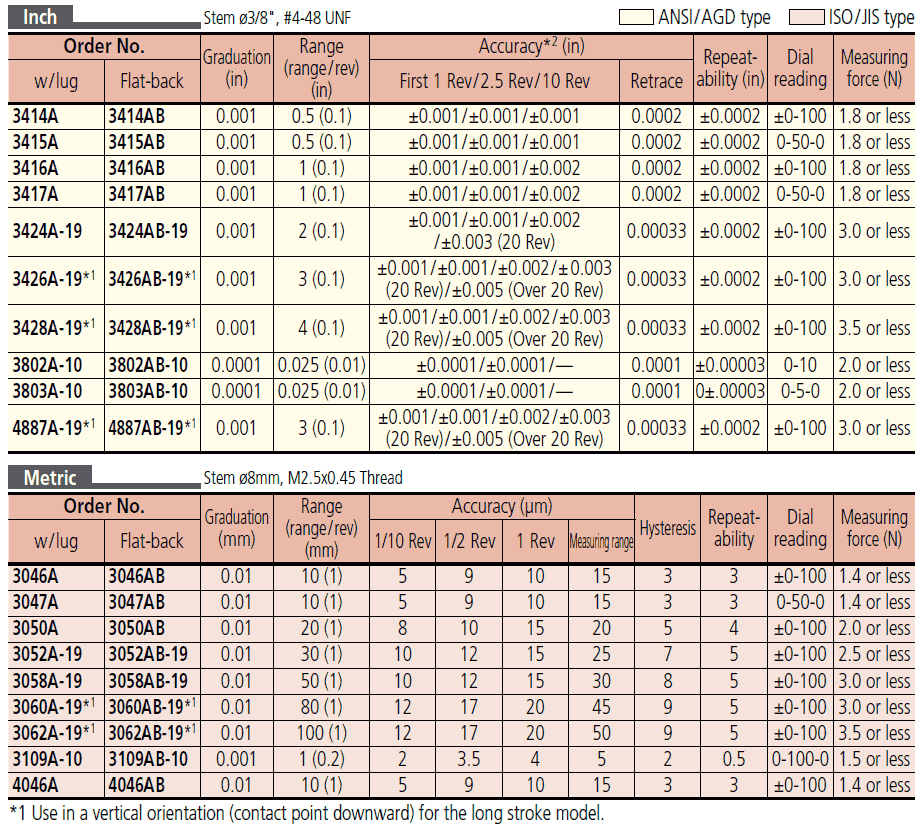

Specifications

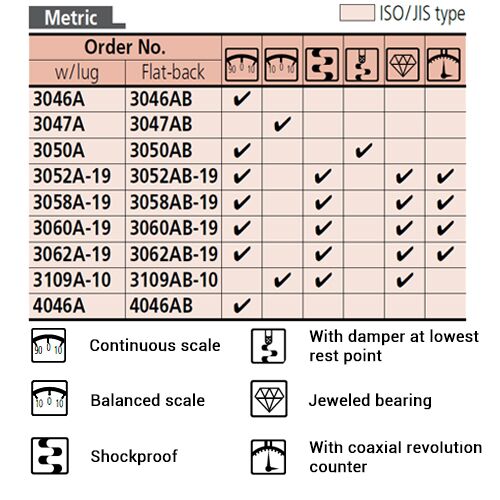

Features




OPTIONAL
21AAB363 Limit hand (2 pcs.)
21RZA149 Bezel clamp

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 3060A-19 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
3060A-19 Mitutoyo Indicator with Large Dial Face

For a quote, please email us at  [email protected]
