| ○ The QuickMike provides a speedy spindle feed of 10 mm ; 0.4” per thimble rotation compared to the conventional micrometer with 5 mm ; 0.025” per rotation. |
| ○ Non-rotating spindle and the new ratchet friction thimble reduces torsion on softer parts being measured |
| ○ Ratchet thimble allows for easy single-hand use when measuring objects |
| ○ ABSOLUTE linear scale eliminates the need for setting the origin point every time the micrometer is powered on |
| ○ Elimination of overspeed errors provides a higher measurement reliability and repeatability |
| ○ IP54 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for use on most shop floor environments |
| ○ Includes a standard bar to set the origin point |
| ○ Supplied in fitted plastic case |
| Range | (75 to 105) mm |
| Resolution | 0.001 mm |
| Accuracy | ± 3µm |
| Measuring Force | (5 to 12) N |
| Flatness | 0.3µm |
| Parallelism | 2µm or less |
| Display | LCD |
| Measuring Faces | Carbide tipped |
| IP Rating | IP65 |
| SPC Output | Yes |
| Mass | 625 gr |
| Manufacturer’s Warranty | 1 year limited manufacturer’s warranty |
| INCLUDED ITEMS | |
| Battery (938882) | SR44 (1 pc) |
| Battery Life | Approx. 7,000 hours |
| OPTIONAL ITEMS | |
| 05CZA662 | SPC cable 1 m / 40″ |
| 05CZA663 | SPC cable 2 m / 80″ |
VIDEOS
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

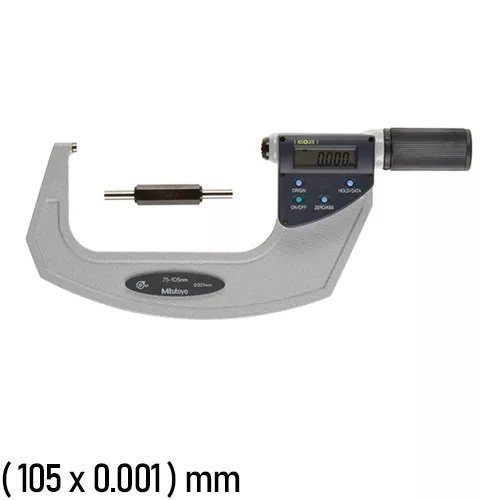

293-669-20 Mitutoyo Outside Micrometer, Digimatic
For a quote, please email us at [email protected]
