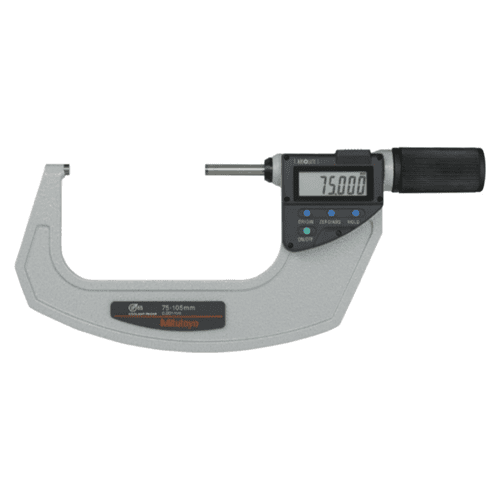

| ○ The Quickmike provides a speedy spindle feed of 10 mm per thimble rotation that enables widely differently sized features to be measured quickly |
| ○ Equipped with Ratchet Stop style for constant measuring force |
| ○ ABSOLUTE linear scale eliminates the need for setting the origin point every time the micrometer is powered on |
| ○ Elimination of overspeed errors provides a higher measurement reliability and repeatability |
| ○ IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for use on most shop floor environments |
| ○ Supplied in fitted plastic case |
| Range | (75 to 105) mm |
| Resolution | 0.001 mm |
| Accuracy | ± 3 µm |
| Measuring Force | (5 to 12) N |
| Flatness | 0.3 µm , 0.000012″ |
| Parallelism | 3 µm |
| Display | LCD |
| Measuring Faces | Carbide tipped |
| IP Rating | IP65 |
| SPC Output | Yes |
| Manufacturer’s Warranty | One-year limited manufacturer’s warranty |
| Replacement | 293-669-22 replaces 293-669-20 |
| Included | |
| Battery (938882) | SR44 (1 pc) |
| Battery Life | Approx. 7,000 hours |
| Optional | |
| 05CZA662 | SPC cable 1 m , 40″ |
| 05CZA663 | SPC cable 2 m , 80″ |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 293-669-22 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
293-669-22 Mitutoyo Outside Micrometer, Digimatic
For a quote, please email us at [email protected]
