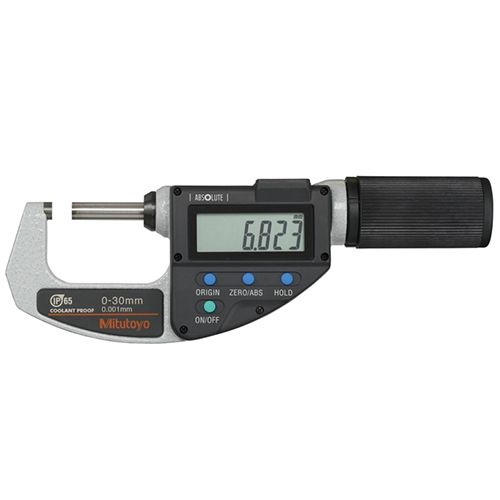

293-666-22 Mitutoyo Digimatic Outside Micrometer (0 to 30) mm

The 293-666-22 Digimatic Quickmike Outside Micrometer provides a speedy spindle feed of 10 mm per thimble rotation which enables widely differently sized features to be measured quickly. The non-rotating spindle enables even inexperienced operators to perform measurements repeatably and accurately.

It also features excellent resistance against oil, water and dust (IP65 protection level) enabling it to be used in machining operations that includes splashing coolant fluid.

Made in Japan and comes with a one-year manufacturer’s warranty.
Shop for The 293-666-22 Digital Outside Micrometer MRM Metrology, and save.
Buy The 293-666-22 Quickmike Outside Micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models

SKU: 293-666-22 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

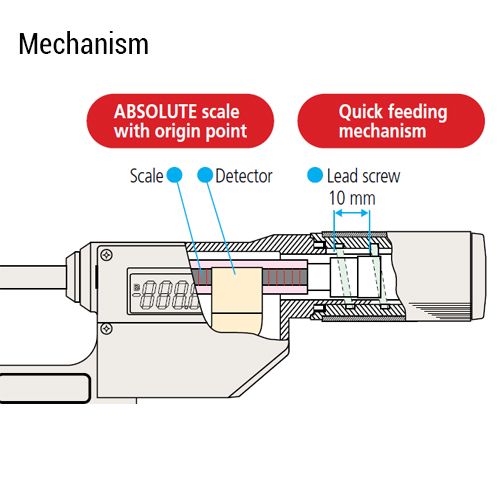

○ Speedy spindle feed of 10 mm per thimble rotation allows for quick measurement
○ Set the origin only once. The absolute linear scale maintains the origin throughout the life of battery, meaning no more zero setting (presetting) or overspeed error
○ Excellent resistance against oil, water and dust (IP65 protection level) enables this product to be used in machining operations that includes splashing coolant fluid
○ Equipped with a large LCD offering easy readability
○ Pressing the HOLD button freezes the current value in the display
○ With function lock added to prevent unintended operation
○ A new low current consumption IC provides extremely long battery life
○ Supplied with a Ratchet Stop for constant measuring force
○ The non-rotating spindle enables even inexperienced operators to perform measurements repeatably and accurately

Range (0 to 30) mm
Resolution 0.001 mm
Accuracy ± 2 µm
Measuring Force (5 to 12) N
Flatness 0.3 µm
Parallelism 2 µm
Constant Measuring Force Yes
Mass 275 g
Warranty One-year limited manufacturer’s warranty
Replacement 293-666-22 replaces 293-666-20, 293-666

Mitutoyo Micrometer QuickMike


INCLUDED
Battery 938882
OPTIONAL
264-020 USB Input Tool Series
USB Keyboard Signal
Conversion Type IT-020U
05CZA662 Connection cable (1 m) – Type B
05CZA663 Connection cable (2 m) – Type B
06AFM380B USB Input Tool Direct (2 m) – Type B
02AZD730G U-WAVE-T – Type IP67
02AZD880G U-WAVE-T – Type Buzzer
02AZE200 U-WAVE-T mounting bracket
02AZD790B Connection cable for U-WAVE-T (160 mm) – Type B
02AZE140B Connection cable for U-WAVE-T for Foot Switch – Type B

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 293-666-22 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
293-666-22 Mitutoyo Outside Micrometer, Digimatic

For a quote, please email us at  [email protected]
