| ○ Measurement data output is available with a water-resistant connection cable |
| ○ Frame is coated with an anti-slip finish for improved grip during use |
| ○ Twice as long battery life than previous models improves throughput and efficiency |
| ○ Auto power ON/OFF function saves battery life and allows for easier use |
| ○ Supplied in a plastic, fitted case |
| ○ IP65 protection permits use in environments exposed to cutting oil, dust, etc |

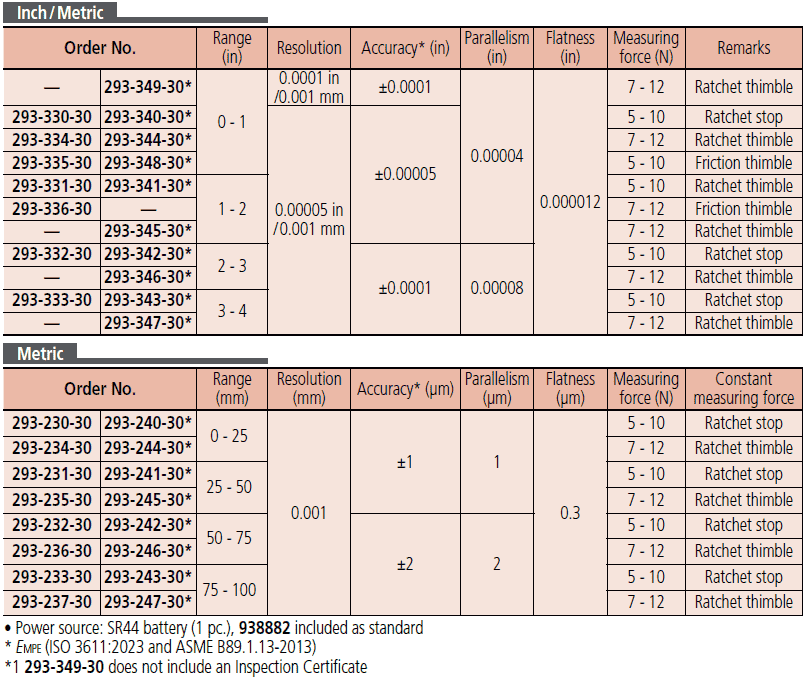

| Range | (0 to 25.4) mm , (0 to 1)” |
| Resolution | 0.001 mm , 0.00005″ |
| Accuracy | ± 0.0001″ |
| Measuring Force | (7 to 12) N |
| Flatness | 0.3 µm , 0.000012″ |
| Parallelism | 1 µm or less , 0.000040″ or less |
| Measuring Faces | Carbide tip |
| Display | LCD |
| SPC Output | Yes |
| Mechanism | Friction Thimble |
| Mass | 270 g |
| IP Rating | IP65 |
| Manufacturer’s Warranty | One year limited manufacturer’s warranty |
| Replacement | 293-335-32 replaces 293-335-30 |
VIDEOS
| Included | |
| Battery (938882) | SR44 (1 pc) |
| Battery Life | Approx. 2.4 years under normal use |
| Optional | |
| 05CZA662 | SPC cable with data switch (1 m , 40”) |
| 05CZA663 | SPC cable with data switch (2 m , 80”) |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 293-335-32 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
293-335-32 Mitutoyo Digimatic Micrometer
For a quote, please email us at [email protected]
