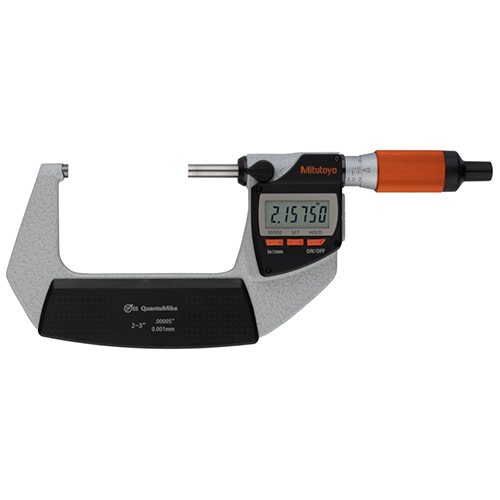

The 293-182-40 Digimatic Micrometer features high-speed and high-accuracy which significantly reduces time for workpiece approach and release.
High Speed & High Accuracy – It achieves spindle movement 4 times faster than the standard metric micrometers. This enables more efficient measurement work through speedy movement and excellent accuracy with a maximum permissible error (J MPE) of just ± 1 μm.
Reliable – Detects when the spindle comes into contact too quickly. It is also equipped with functions such as tolerance judgment, calculation, and calibration timing notification that allow measurement work to be performed reliably, without human error.
Easy to Use – Equipped with various features to meet the needs of operators, such as a large display and bidirectional communication. Designed for ease of use, the main unit enables comfortable measurement in actual manufacturing processes.
Can be used in environments where there is water, oil, or dust. The micrometer achieves protection level IP65 for water-resistant and dust-resistant performance. It can be used with confidence even at sites where it may be splashed by coolant.
It comes with a one-year manufacturer’s warranty.
Shop for 293-182-40 Digital Micrometer at MRM Metrology, and save.
Buy 293-182-40 QuantuMike Micrometer now for the best price.
Email us for the lowest price.
Click on [email protected] to request a quotation.
| â—‹ 4x faster spindle speed |
| â—‹ Preset, Zero, Hold, Function Lock, Error Display |
| â—‹ 1 pc. Ratchet Thimble + Speeder |
| â—‹ Go/NoGo Icons: At-a-glance verification |
| â—‹ Calibration date alerts: Warning and due date alerts |
| â—‹ Approach Speed Warning: Reduce over-torquing |
| â—‹ Calculation: Auto-calculate corrections and more |
| ○ S1 Digimatic output: Send measurement to Excel or easily program features with software (ITPak 3.0 or MeasurLink®) |
| â—‹ Auto power On/Off. Key customization |
| Range | (50.8 to 76.2) mm , (2 to 3)” |
| Resolution | 0.001 mm , 0.00005″ |
| Accuracy | ± 0.0001″ |
| Flatness | 0.000012″ |
| Parallelism | 0.00008″ |
| Mass | 465 g |
| IP Rating | IP65 |
| Warranty | One-year limited manufacturer’s warranty |
| 293-182-40 replaces 293-182-30 |
VIDEOS
| INCLUDED | |
| Reference Bar | |
| Storage Case | |
| Spanner | 301336 (1 pc.) |
| Battery | CR2032 (1 pc.) |
| Battery Life | Approx. 2 years under normal use |
| OPTIONAL | |
| 264-020 | USB Input Tool Series , USB Keyboard Signal , Conversion Type IT-020U |
| 06AGL111 | Connection cable (1 m) |
| 06AGL121 | Connection cable (2 m) |
| 06AGQ001A | USB Input Tool Direct (2 m) |
| 264-622 | U-WAVE-TM (IP67) |
| 264-623 | U-WAVE-TM (Buzzer) |
| 264-626 | U-WAVE-TMB (IP67) |
| 264-627 | U-WAVE-TMB (Buzzer) |
| 02AZF960 | Connecting unit for U-WAVE-TM/ TMB (IP67) |
| Color Speeder Sleeve | â—‹ Black (04GAA899) – Standard Accessory â—‹ Red (04GAA900) â—‹ Yellow (04GAA901) â—‹ Green (04GAA902) â—‹ Blue (04GAA903) â—‹ Gray (04AAB208) |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL 293-182-40 when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
293-182-40 Mitutoyo Micrometer, Digimatic
For a quote, please email us at  [email protected]
