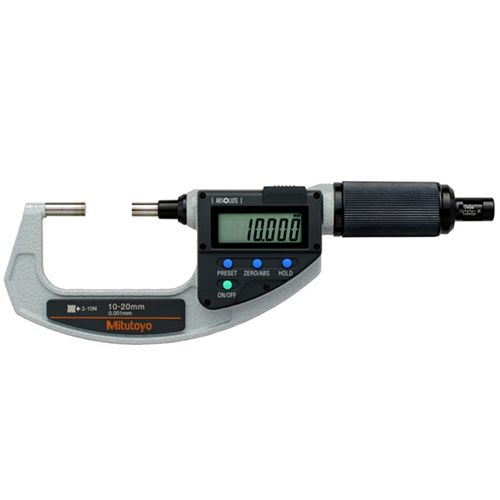

227-206-20 Mitutoyo Digimatic Outside Micrometer (10 to 20) mm

The 227-206-20 Digimatic Outside Micrometer has a compact design featuring constant and low measuring force mechanism in the thimble, and adjustable measuring force that accommodates various kinds of work materials. The measurement-value hold function automatically retains the data at a specified measuring force, ensuring accuracy.

It comes with a one-year manufacturer’s warranty.
Shop for 227-206-20 Digital Micrometer at MRM Metrology, and save.
Buy 227-206-20 Micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

1 year warranty
spc
Absolute

Other Models
SKU: 227-206-20 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Equipped with a constant/low measuring force mechanism
○ The measurement-value hold function automatically retains the data at a specified measuring force

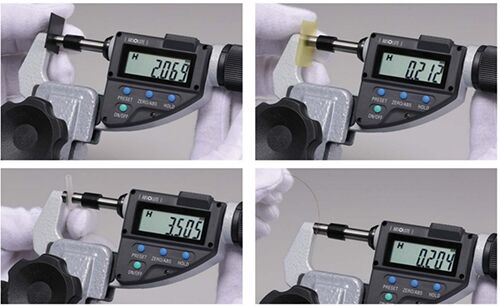

○ Suitable for measuring flexible workpieces such as electric wire, paper, and rubber
○ Non-rotating spindle reduces workpiece deformation
○ With SPC data output
○ With ABSOLUTE linear scale
○ Adjustable Measuring Force

Range (10 to 20) mm
Resolution 0.001 mm
Accuracy* ± 2 µm
Measuring Force (2 to 10) N adjustable
Flatness 0.3 µm
Parallelism 2 µm
Measuring Force 2, 4, 6, 8, 10
Accuracy of the Selected Measuring Force*¹ ± (0.1 N + the selected measuring force/10)
Repeatability of Measuring Force*¹ Within 0.1 N
Unit of Measurement Metric
Battery 938882
Display LCD
Mass 425 g
Replacement 227-206-20 replaces 227-206
Warranty One-year limited manufacturer’s warranty

* EMPE (ISO 3611:2023 and ASME B89.1.13-2013)
*¹ These values are guaranteed when micrometer is used in a horizontal orientation (within ±3 degrees)

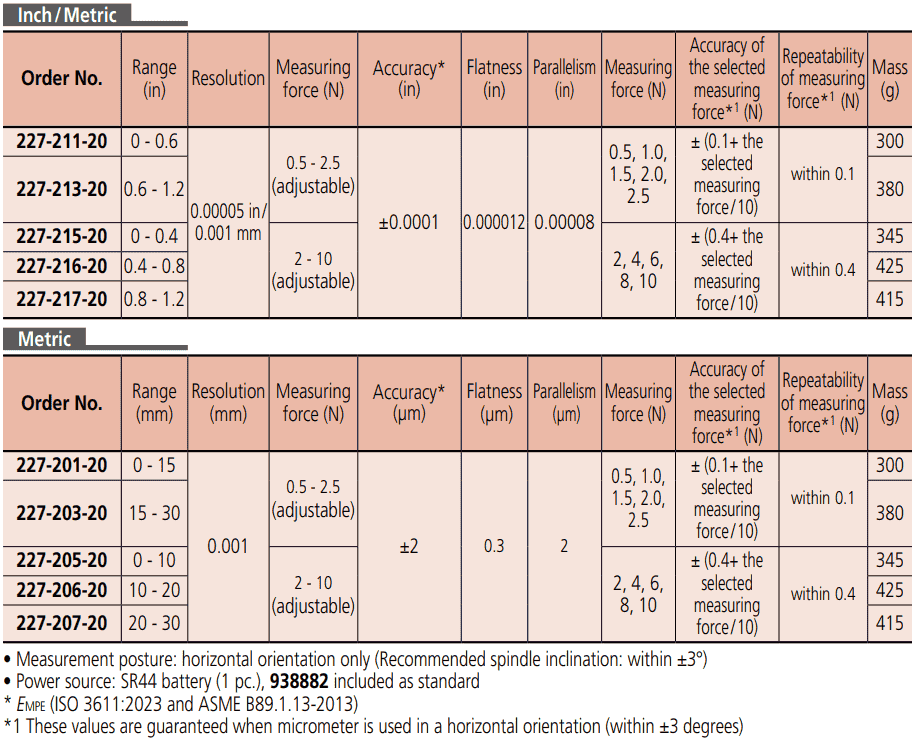

Micrometer Absolute Digimatic

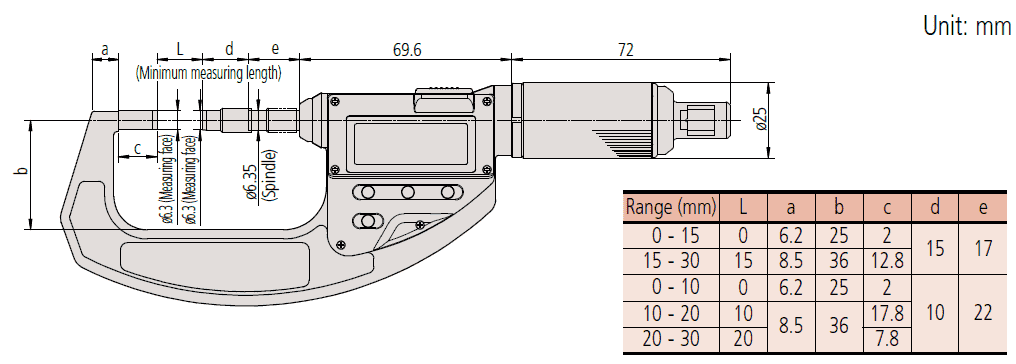

227-205-20 dimension

INCLUDED ITEMS
Battery (938882) SR44 (1 pc)
OPTIONAL ITEMS
264-020 USB Input Tool Series
USB Keyboard Signal
Conversion Type IT-020U
05CZA662 Connection cable (1 m) – Type B
05CZA663 Connection cable (2 m) – Type B
06AFM380B USB Input Tool Direct (2 m) – Type B
02AZD730G U-WAVE-T – Type IP67
02AZD880G U-WAVE-T – Type Buzzer
02AZE200 U-WAVE-T mounting bracket
02AZD790B Connection cable for U-WAVE-T (160 mm) – Type B
02AZE140B Connection cable for U-WAVE-T for Foot Switch – Type B

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 227-206-20 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
227-206-20 Mitutoyo Digimatic Outside Micrometer

For a quote, please email us at  [email protected]
