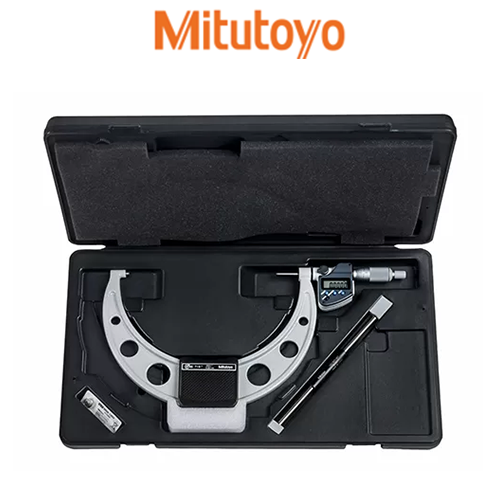

293-353-30 Mitutoyo Digimatic Micrometer

The 293-353-30 Coolant-Proof Micrometer’s ratchet stop thimble mechanism provides a constant measuring force on the spindle to ensure accurate, repeatable measurements. The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring widely different dimensions, as well as, easier one-handed measurements.

Coolant-Proof Micrometers MDC-MX Series. IP65 rated

It comes with a one-year limited manufacturer’s warranty. Shop for 293-353-30 at MRM Metrology and use CAL 293-353-30 when ordering calibration services.

Other Models
SKU: 293-353-30 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration
○ Measurement data output is available with a water-resistant connection cable
○ Frame is coated with an anti-slip finish for improved grip during use
○ Twice as long battery life than previous models improves throughput and efficiency
○ Auto power ON/OFF function saves battery life and allows for easier use
○ Supplied in a plastic, fitted case
○ Includes a standard bar
○ IP65 protection permits use in environments exposed to cutting oil, dust, etc
Range (177.8 to 203.2) mm ; (7 to 8)”
Resolution 0.001 mm ; 0.0001″
Accuracy ± 0.00015″
SPC Output Yes
Ratchet/Thimble Ratchet Stop
Mass 800 gr
Measuring Force (5 to 10) N
Flatness 0.3 µm ; 0.000012″
Parallelism 4 µm or less ; 0.00016″ or less
Measuring Faces Carbide tip
Display LCD
IP Rating IP65
Manufacturer’s Warranty 1 year limited manufacturer’s warranty



Battery (938882) SR44 (1 pc)
Battery Life Approx. 2.4 years under normal use
05CZA662 SPC cable with data switch (1 m / 40”)
05CZA663 SPC cable with data switch (2 m / 80”)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
293-353-30 Mitutoyo Micrometer, Digimatic

For a quote, please email us at  Service@MRMmetrology.com
