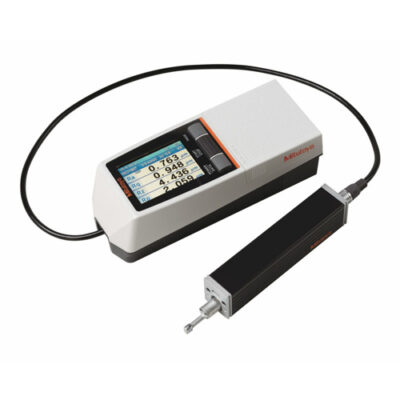

178-561-12A Mitutoyo Surftest, SJ-210 Standard Drive Unit

FREE Calibration Certificate
FREE Shipping in Canada.

The 178-561-12A Surface Roughness Tester allows users to view surface roughness waveforms on the built-in, color LCD display. The display provides operators with sectional calculation results, assessed profiles, load curves and amplitude distribution curves in addition to calculation results.

This instrument is able to perform measurements in any orientation, including both vertical and upside-down. Optional accessories, such as a height gauge adapter, efficiently perform measurements in various situations and setups.

It comes with a one-year manufacturer’s warranty.
Shop for 178-561-12A Surface Roughness Tester at MRM Metrology, and save.
Buy 178-561-12A Surftest now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC
Free Shipping Canada
Free-Calibration-Certificated
SKU: 178-561-12A Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Built-in 2.4-inch color graphic, back-lit LCD display provides excellent readability, improved visibility and is easy-to-use in dark environments
○ Operation keys are clearly defined on the front of the unit and under the sliding cover
○ Internal memory stores up to 10 measurement conditions and one measured profile
○ An optional memory card can be used to store large quantities of measured profiles and conditions
○ Password protection prevents unintended operations and protects instrument settings
○ The display interface supports 16 interchangeable languages
○ LCD display mode can be freely switched between portrait and landscape as well as left-hand or right –hand direction
○ The Surftest SJ-210 complies with the following standards: JIS (JIS-B0601-2001, JIS-B0601-1994, JIS B0601-1982), VDA, ISO-1997, and ANSI

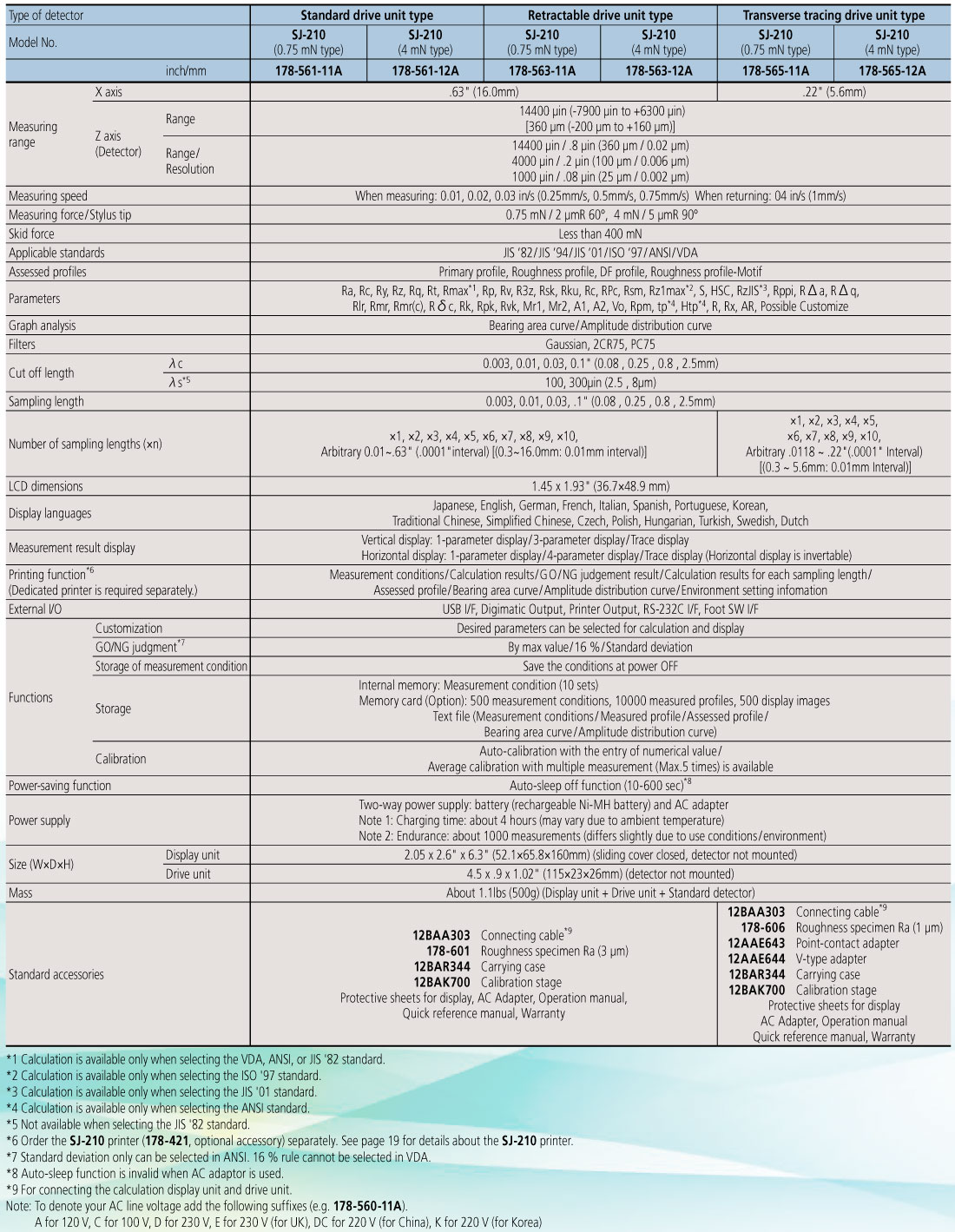

Range X-Axis 16.0 mm , 0.63″
Measuring Speed 0.25, 0.50, 0.75 mm/s , 0.01, 0.02, 0.03 in/s
Returning Speed 1 mm/s , 0.04in/s
Detector Z-Range 100, 25, 360 μm , 1000, 14400, 4000 μ”
Detector Z-Range Resolution 0.002, 0.006, 0.02 μm , 0.08, 0.20, 0.80 μ”
Measuring Force 4 mN
Skid Force Less than 400 mN
Stylus tip (Diamond, angle °/ tip radius) 4 mN / 5 µmR 90°
External I/O Digimatic output, Printer output, RS-232C I/F, Footswitch I/F, USB I/F Digimatic output
Power Supply (battery) Rechargeable Ni-MH
Power Supply AC Adapter
Charging Time 4 hrs
Endurance 1000 measurements (approx)
External Data Storage Micro SD card
Display Unit 52.1 x 65.8 x 160 mm , 2.05 x 2.59 x 6.3″
Drive Unit 115 x 23 x 26 mm , 4.5 x 9 x 1″
Mass 0.5 kg , 1.1 lbs.
Manufacturer’s Warranty One year limited manufacturer’s warranty

Brochure

VIDEOS


INCLUDED ITEMS
12BAA303 Connecting cable
178-601 Roughness specimen Ra (3 μm)
12BAR344 Carrying case
12BAK700 Calibration stage
OPTIONAL ITEMS
12AAA217 Nosepiece for flat surface
12AAA218 Nosepiece for cylindrical surface
12AAE644 V-type adapter
12AAE643 Point-contact adapter
12AAA210 Extension Rod
12AAA216 Support feet set
12AAA219 Vertical positioning adapter
12AAA221 Mounting spigot 8 mm
12AAA220 Mounting spigot 9.5 mm
12AAA222 Height Gauge Adapter 9×9 mm
12AAA233 Height Gauge Adapter 1/4 x 1/2″
178-033 Setting attachment V type
178-034 Setting attachment slider type
178-035 Setting attachment inside diameter type

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 178-561-12A when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
178-561-12A Mitutoyo Surftest, SJ-210 Standard drive unit

For a quote, please email us at  [email protected]
