| ○ Used for quick and accurate setting of Dial Bore Gauges, Holtests and Inside Micrometers |
| ○ It’s ideal for inside metric measurements |
| ○ Made of steel material |
| Nominal Size Ød | 150 mm |
| Accuracy | ± 0.0025 mm |
| Outside Diameter ØD | 235 mm |
| Thickness | 38.1 (25.4) mm |
| Type | B |
| Manufacturer’s Warranty | One (1) year limited manufacturer’s warranty |
Steel (Metric)
Steel (Inch)
Cera (Metric)
Cera (Inch)
C-30
*1 Actual diameter is marked in 0.001 mm increments.
*2 Cylindricity is defined as per JIS B 0621 definitions and designations of geometrical deviations, Section 4.4 “Cylindricity.” Cylindricity is measured using three cross-sections between the top and bottom face of a ring, namely, close to the face near each sides and the center.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

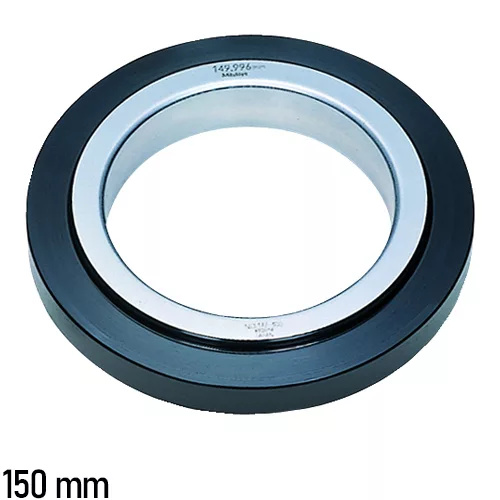

177-300 Mitutoyo Setting Ring, Steel
For a quote, please email us at [email protected]
