| ○ The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard-to-reach areas |
| ○ With Ratchet Stop for constant force |
| ○ Speedy spindle feed of 10 mm / 0.4”/rev. (Quickmike type) |
| ○ With a standard bar except (0 to 25) mm / (0 to 1)” models |
| ○ Supplied in fitted plastic case |
| Range | (3 to 4)” |
| Graduation | 0.0001″ |
| Accuracy | ± 0.0002″ |
| Remarks | Type A |
| Mass | 525 g |
| Parallelism | 0.00016” |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

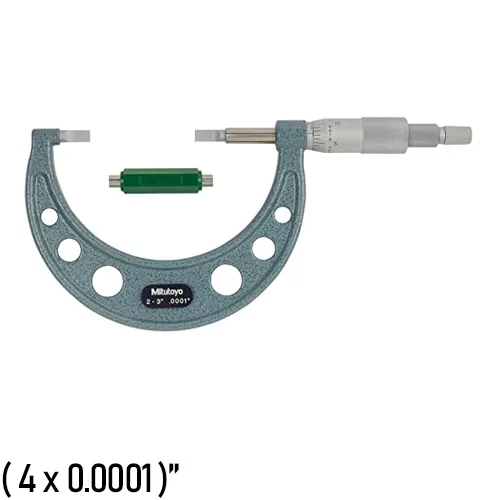

122-128 Mitutoyo Micrometer, Blade
For a quote, please email us at [email protected]
