| ○ Hammertone-green, baked-enamelfinished frame |
| ○ Ratchet Stop for exact repetitive readings |
| ○ With a standard bar |
| ○ 0.0001″ reading is obtained with vernier |
| Included in Set | 103-135, 130-136, 103-217, 103-218, 3 micrometer standards |
| Range | (0 to 4)” |
| Graduation | 0.0001″ (with Vernier) |
| Accuracy | ± 0.0001″, ± 0.00015″ |
| Mass | 1600 g |
| Flatness | 0.000024″ |
| Measuring faces | Carbide tipped |
| Parallelism | [0.00008 + 0.00004 (L/4)]” L= max range (inch) |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

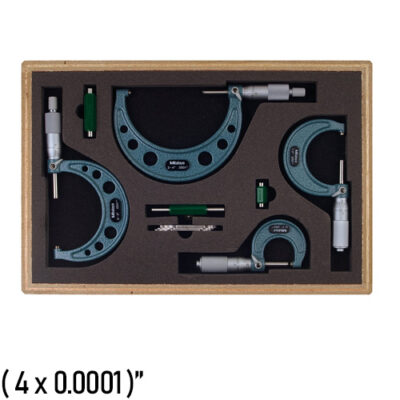

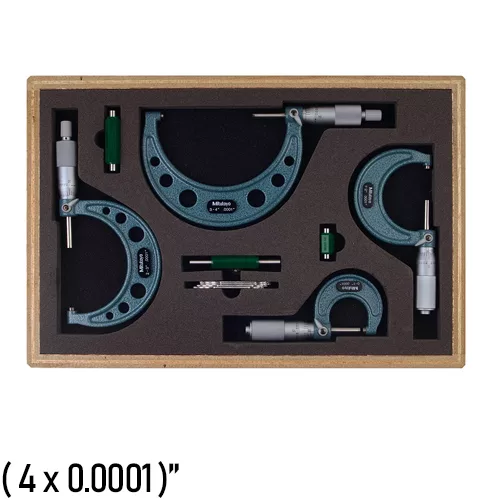

103-931 Mitutoyo Micrometer Set, Vernier
For a quote, please email us at [email protected]
