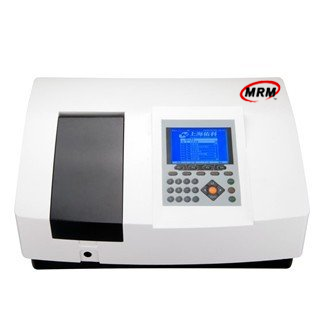

MRM-UV1800 Spectrophotometer, UV-VIS

I.The host can independently accomplish photometric measurement and quantitative measurement, spectral scanning, dynamics, DNA/protein test, wavelength testing and data printing function,etc. II.Using the latest ARM system, built-in double operating system in both Chinese and English, can through the USB interface transfer data storage.
Category:

Product Description

Features
I.Adopt 1200 bar/mm high-performance grating. New new light control system makes the instrument light switch more quickly. II.The instrument adopts 320 * 240 lattice highlighted LCD display, direct display scan map, the screen interface simple, convenient use. III.Socket xenon lamp and tungsten lamp design, after change light no need optical debugging IV.Large sample chamber,Can accommodate 5-100mm various specifications of the cuvette V.Can be directly connected to the printer to print patterns and the experimental data.VI. Optional disk automatic 8 joint cuvettes holder.
Model
UV1800
UV1801
Optical system:
CT grating monochromator
CT grating monochromator
Wavelength range:
190 nm – 1100nm
190 nm – 1100nm
Wavelength accuracy:
0.5 nm
0.3 nm
Spectral bandwidth
2 nm
1 nm
Wavelength repeatability:
<=0.2 nm
<=0.1 nm
Stray light:
<= 0.05%T
<=0.05%T
Photometric accuracy:
+/- 0.5%T
+/- 0.3%T
Photometric rang:
-0.3A-3A
-0.3A-3A
Stability:
+/- 0.001 A/h @500nm
+/- 0.001 A/h @500nm
Scanning speed :
Fast, Mid, Slow
Fast, Mid, Slow
Data output :
Printer or USB export
Printer or USB export
Display modes:
320*240 LCD
320*240 LCD
Zero setting
automatic
Automatic
Software support :
Optional
Optional
Instruent size :
590*460*220mm
590*460*220
Weight:
25 kg
25 kg
