Product Description
- Features
- Specifications
- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Digital display of angle |
| ○ Programmable angle limits |
| ○ Angle dial with 2° resolution |
| ○ Computer Control. An RS-232 port is provided to interface with a PC. A command set is provided to allow for full control from a PC |
| ○ Digital Angle Indication. Rotational travel is indicated in degrees or revolutions, with RS-232 output of angle data |
| ○ Programmable Angle Limits. The TSTM-DC can stop at or cycle between programmable upper and lower angle limits. Programmable in degrees or revolutions |
| ○ Overload Protection. Protects the torque sensor against overload (requires a Model 7i or 5i force/torque indicator and 09-1162 multi-function cable). The user programs the desired percentage of full scale of the sensor |
| ○ Auto-return. The torque table rotates to an angle limit or torque set point (requires a Model 7i or 5i force/torque indicator and 09-1162 cable), stops, and reverses direction at full speed to the other angle limit or torque set point |
| ○ Cycling / Dwell Time. Same as auto-return, but with the ability to program up to 100,000 cycles. Programmable dwell time for upper and lower limits (set independently) can be set up for up to 10,000 seconds. Independent CW and CCW speeds may be programmed |
| ○ Programmable Button Functions. Programmable CW and CCW button functions – momentary motion, maintained motion, or auto |
| ○ Independent CW and CCW Speeds |
| ○ Selectable speed units of measurement (RPM and °/s) |
| ○ Password protection |
| Maximum Torque | 11.5 N.m , 100 in.lbf |
| Speed Range | (0.01 to 15) RPM ; (0.05 – 90)°/s |
| Speed Accuracy | ± 0.2% of setting, ± 0% variation with load |
| Rotational Travel Accuracy | ± 0.7° (0.002 revolutions) |
| Rotational Travel Resolution | 0.1° (0.01 revolutions) |
| Rotational Travel Repeatability | 0.1° (0.0003 revolutions) |
| Throat | 104 mm , 4.10″ |
| Manual Adjustment | 12° / adjustment knob revolution |
| Maximum Slider Travel | 394 mm , 15.5″ |
| Slider Travel Rate | 26.6 mm , 1.047″ / lever revolution |
| Power | 80-250 VAC |
| Manufacturer’s Warranty | Three years (See individual statement for further details) |
| Included Items | |
| DC controller | |
| Controller connection cable | |
| Indicator mounting kit | |
| Encoder cable | |
| Column cap with hardware | |
| Allen wrench set | |
| Thumb screw for mounting indicator (4 units) | |
| 09-1089-1 | Power cord |
| Mounting leg with hardware (2 units) | |
| Additional column cap with hardware | |
| Optional Items | |
| 09-1162 | Multi-function cable, 7i/5i indicator to test stand |
| 09-1056 | Serial cable, test stand to PC |
| RSU100 | Communication adapter, RS-232 to USB |
| TSF002 | Horiz. / wall mounting kit |
| AC1016 | Mounting adapter, MR55-200 to test stand |
| 09-1089-1 | Power cord, 110V US |
| SP-2736-12 | Column extension, 12 in. / 305 mm |
| SP-2736-24 | Column extension, 24 in. / 610 mm |
| SP-2736-42 | Column extension, 42 in. / 1065 mm |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL TSTMH-DC when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

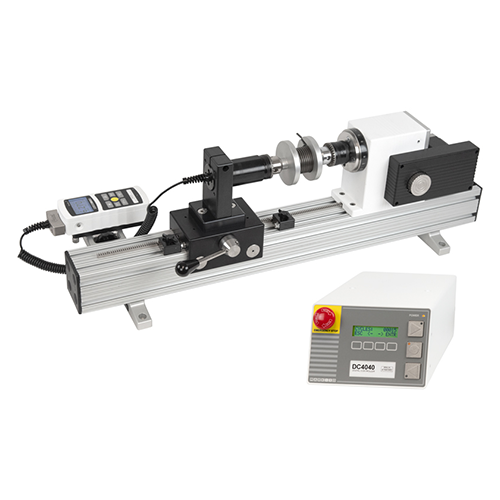

TSTMH-DC Mark-10 Motorized Torque Test Stand
For a quote, please email us at [email protected]
