Product Description
- Features
- Specifications
- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Compatible with all Mark-10 force gauges, accessories and grips |
| ○ Mounting holes for bench mounting |
| ○ Loading table with 25 #10-32 UNF holes for fixture mounting |
| ○ Precision Acme screw and nut |
| ○ Optional digital travel display |
| Maximum Force | 1000 lbf , 5 kN |
| Maximum Travel | 89 mm , 3.5″ |
| Travel Rate | 2.5 mm , 0.1″ / hand-wheel revolution |
| G1028 | Small hook |
| G1038 | Medium hook |
| G1009 | Compression plate, 2” dia. |
| G1030 | Thread adapter, 5/16-18M to #10-32F |
| G1044 | Adapter plate |
| Allen wrench set | |
| #10-32 M/M stud with jam nuts | |
| Thumb screw for force gauges with 0.12 – 500 lbF capacities | |
| Thumb screw for force gauges with 1,000 – 2,000 lbF capacities | |
| Resource CD | |
| Mounting leg with hardware (TSC1000H) | |
| Additional column cap with hardware (TSC1000H) | |
| Manufacturer’s Warranty | 3 years (See individual statement for further details) |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL TSC1000H when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

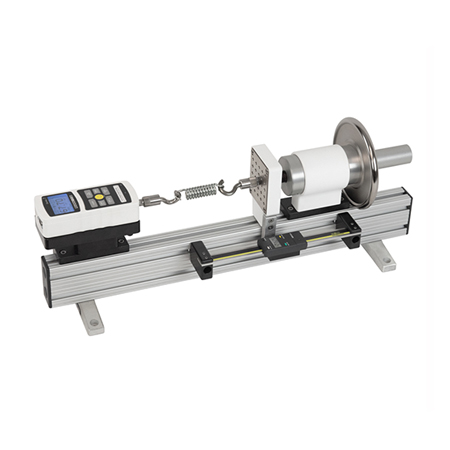

TSC1000H Mark-10 Test Stand
For a quote, please email us at [email protected]
