Product Description
- Features
- Specifications
- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Weighing, Parts Counting, Percent Weighing |
| ○ Check Weighing, Dynamic Weighing (Display Hold) |
| ○ Backlit Liquid Crystal Display (LCD), 256 x 80 pixels |
| ○ Internal power supply with power cord (included) or rechargeable battery (sold separately) |
| ○ Easy access communication ports including RS232 and Micro SD slot (included) |
| ○ Second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth |
| ○ Discrete I/O and Analog Output (sold separately as accessories) |
| ○ GLP/GMP data output with real-time clock |
| ○ IP68/NEMA 4X stainless steel housing and mounting bracket |
| ○ Check weighing symbols with selectable operation and audible signal settings |
| ○ Menu lock switch, multiple operating languages, selectable environmental and auto-print settings |
| ○ Stability indicator, overload/underload indicators |
| ○ Selectable adjust contrast settings, auto-dim, auto-off, auto tare, screensaver |
| Resolution |
75,000 |
| Battery Life |
20 Hours with Rechargeable Battery |
| Outputs |
3 In/4 Out digital I/O; 4 – 20mA |
| Protection Rating |
IP68 |
| Display |
Dot matrix LCD with white LED backlight |
| Tare Range |
To capacity by subtraction |
| Units of Measurement |
Custom; Gram; Kilogram; Metric Tonnes; Ounce; Pound; Pound:Ounce; Tonne |
| Working Environment |
(-10 to 40)°C, 85% RH, Non-condensing / (14 to 104)°F, 85% RH, Non-condensing |
| H x L x W |
(222 x 270 x 76) mm / (8.7 x 10.6 x 3)” |
| Weight |
2 kg / 4.4 lb |
| 30424404 |
2nd RS232/RS485/USB Kit, TD52 |
| 30064203 |
Printer, Impact, SF40A, AM |
| 30424403 |
Analog Output Kit, TD52 |
| 80251992 |
Printer, Thermal, STP-103, US |
| 30472064 |
Auxiliary display AD7-RS |
| 80500552 |
Cable, RS232, CKW TxxXW |
| 30593703 |
Datalogic Barcode Scanner QD2131 |
| 30097591 |
Discrete I/O Kit, 2-In/4-Out, R71 TD52 |
| 30429666 |
Ethernet kit TD52 |
| 30424023 |
In-Use-Cover, TD52XW |
| 30548596 |
LC cable adaptor for TD52 indicator |
| 30424405 |
Rechargeable battery Li-ion TD52 |
| 30424406 |
Ethernet kit TD52 |
| 30424026 |
Wall Mount Kit, SST, TD52XW |
| 30412537 |
Wireless Dongle MTICWD-200 |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

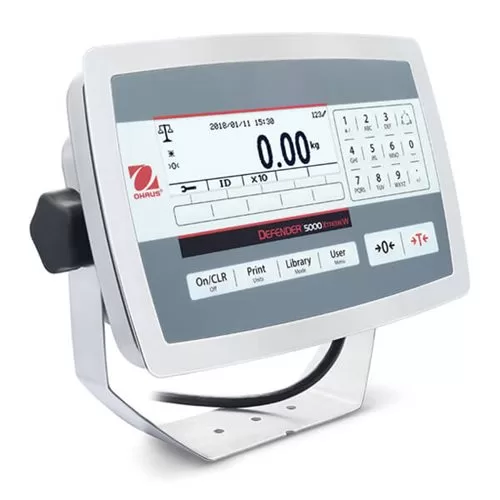

TD52XW Ohaus Indicator
For a quote, please email us at [email protected]
