• Automatically measures volts ac and volts dc with precise digital resolution.
• Displays resistance to 1000Ω.
• Easy and accurate OpenJaw™ current measurement.
• Continuity beeperCompact design with neat probe storage.
• Rugged enough to withstand a 10-foot (3m) drop.
• Detachable SlimReach™ probe tips are customized for national electrical standards.
• Test leads accept Fluke accessory test clips.
• Available in 600V and 1000V models.
• Can stay connected much longer than solenoid type tester.
• Auto off mode to conserve battery life.
• Optional holster attaches to a belt and neatly stows test leads.
Safety Conformance
All inputs are protected to CE, IEN61010-1 CAT III 600V.
Specifications
|
| Max wire size |
1/0 THHN Cable |
| Jaw opening |
12.9 mm (0.5 in) |
| Current range AC rms |
0 to 100.0 A |
| Accuracy AC current (50/60 Hz) |
3% ± 3 counts |
| AC response |
Averaging |
| Voltage range AC/DC |
0 to 1000 V |
| Voltage accuracy |
AC:1.5% ± 2 counts | DC: 1% ± 1 count |
| Resistance range |
0 to 1000 Ω |
| Continuity beeper threshold |
On at < 25 Ω, off at > 400 Ω |
| Volts indicator LED threshold |
Guaranteed on by 30 V AC |
Environmental Specifications
|
| Operating temperature |
-10°C to 50°C |
| Storage temperature |
-30°C to 60°C |
| Humidity (without condensation) |
0% to 95% (5°C to 30°C) | 0% to 75% (30°C to 40°C) | 0% to 45% (40°C to 50°C) |
| Dust/water resistance |
Yes |
| Operating altitude |
Averaging |
| Temperature coefficient |
0.1 x (specified accuracy)/°C (< 18°C or> 28°C) |
Safety Specifications
|
| Measurement Category |
IEC 61010-2-032, IEC61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A ac |
| Agency approvals |
CSA, TUV |
| Maximum voltage |
1000 V between any terminal and earth ground |
Mechanical and General Specifications
|
| Size |
30.5 x 51 x 203 mm |
| Weight |
300 g |
| Warranty |
Two-years |
| Battery life |
3% ± 3 counts |
| Battery type |
200 hour zinc chloride, 400 hour alkaline |
| Low battery indicator |
Yes |
| Current sensor opening |
12.9 mm |

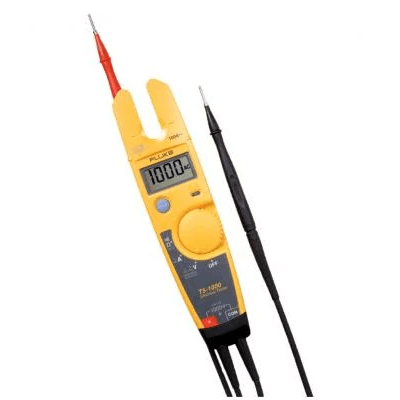

Models: Fluke T5-1000 Voltage, Continuity and Current Tester
Fluke T5-1000
Fluke T5-1000 Voltage, Continuity and Current Tester
Includes:
1. 4 mm detachable probes
2. Instruction sheet
Calibration and Repair Services
MRM provides Calibration and Repair Services for the T5-1000 Voltage, Continuity and Current Tester
For a quote, please email us at [email protected]
