PH-3515F Mitutoyo Profile Projector

Bench-top model that uses a horizontal optical system. Suitable for thread pitch measurements—blurred or distorted images will not be produced when the workpiece is angled




Effective Diameter 353 mm / 14″
Table Travel (X-axis) 254 mm / 10”
Vertical Travel (Y-axis) 152 mm / 6”
Magnification Accuracy Contour illumination ± 0.1% or less
Magnification Accuracy Surface illumination ± 0.15% or less

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Bench-top model that uses horizontal optical system
○ Suitable for thread pitch measurements-blurred or distorted images will not be produced when the workpiece is angled
○ Erect image on the day bright screen
○ 353 mm / 14” diameter protractor screen with cross-hairs and staggered lines for easy alignment
○ Digital angle measurement to 1″ or 0.01º
○ Heavy-duty workpiece table incorporates linear scales for fast, accurate measurement
○ Built-in linear scales for use with optional display counters
○ Absolute/incremental mode switching, Zero set

Order Number 172-868A
Projected Image Erect Image
Effective Diameter 353 mm / 14″
Screen Material Fine ground glass
Reference Line Cross hair line
Screen Rotation ± 360°, fine feed and clamp
Angle Display (LED) Resolution 1″ or 0.01°(switchable), Range ± 370°
Projection Lens Standard accessory 10 x (172-184)
Magnification Accuracy Contour illumination ± 0.1% or less
Magnification Accuracy Surface illumination ± 0.15% or less
Light Source Halogen bulb (24V 150W)
Optical System Telecentric system
Functions 2-step brightness switch, Heat-absorbing filter, Cooling fan
Surface Illumination Light source, Halogen bulb(24V 150W)
Surface Illumination Functions, Adjustable condenser lens. Heat-absorbing filter, Cooling fan
Table Travel (X-axis) 254 mm / 10”
Table Size (X, Z) 4505×146 mm / 17.7”x 5.7”
Vertical Travel (Y-axis) 152 mm / 6”
XY Stage Resolution 0.001 mm / 0.00005″
Measuring Unit Built in Linear scale
Max. Workpiece Load 45 kg / 100lbs
Power Supply 120V AC, 50/60Hz
Mass 150 kg / 333 lbs


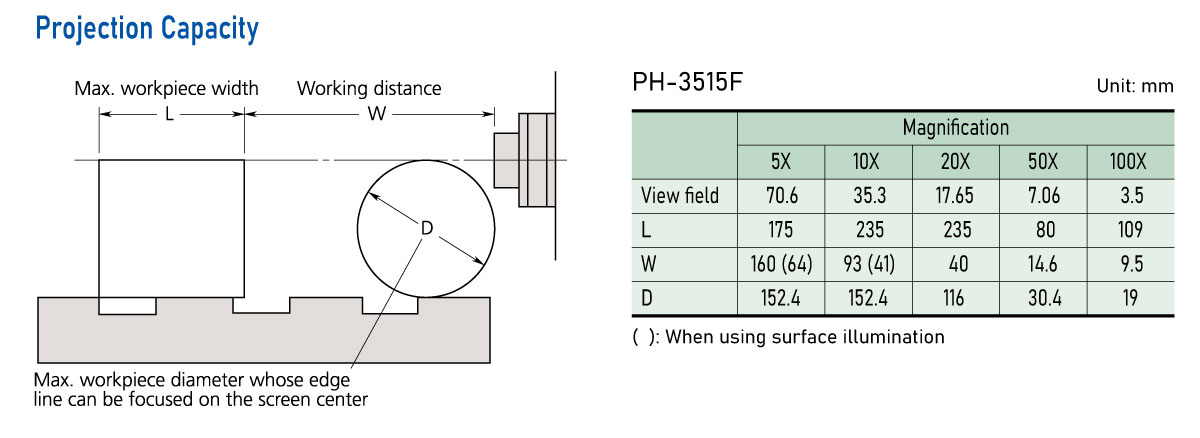

172-145 5X projection lens set
172-175 5X projection lens
172-184 10X projection lens set (standard accessory)
172-011 10X projection lens
172-173 20X projection lens set
172-165 50X projection lens set
172-174 50X projection lens
172-166 100X projection lens set
172-116 Standard scale (50 mm)
172-117 Standard scale (2″)
172-118 Reading scale (200 mm)
172-161 Reading scale (300 mm)
172-119 Reading scale (8″)
172-162 Reading scale (12″)
172-286 Green filter
512305 Halogen bulb (24V, 150W)
172-423 Surface illumination
64AAB176 Machine stand
12BAA653 Fiber optical illumination cable (standard accessory)
12BAA637 Halogen reflector lamp (standard accessory)
383228 Vinyl cover (standard accessory)
172-142 Center support
172-143 Center support riser
172-144 Rotary vise (Max. workpiece dia.: 60 mm / 2.3”)
172-234 V-block with clamp (Max. workpiece dia.: 50 mm / 2”)
172-132 Vertical holder
172-001 Tipped-saw support stand
172-002 Cutter support stand

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
PH-3515F Mitutoyo Profile Projector

For a quote, please email us at  Service@MRMmetrology.com
