| ○ Pulsation resistant, liquid-filled stainless steel case |
| ○ Glycerin filled standard |
| ○ Brass or lead free brass and stainless steel internals |
| ○ Restricted orifice |
| ○ Crimp-On bezel |
| ○ dual scale (psi/kPa) |
| ○ Optional U-Clamps and front flanges |
| ○ Dry case available |
| ○ CRN registered |
| Capacity | (0 to 100) psi |
| Graduation | 2 psi |
| Accuracy | ± 1.5% of full scale |
| Dial | 2.5″ (63mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | Brass with restricted orifice |
| Connection | 7/16″-20 SAE, lower mount |
| Fill Liquid | Glycerin |
| Bourdon Tube | C-shaped for pressures up to and including 600 psi, spiral for pressures above 1000 psi |
| Movement | Brass |
| Pointer | Aluminum, anodized black |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa) , 15% for pressures over 1,500 psi (10,342 kPa) |
| Socket Gasket | Buna N for two piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone Rubber |
| Working Pressure | Maximum 75% of full scale value |
| Enclosure Rating | IP65 |
| Warranty | Five-year limited manufacturer’s warranty |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL PFQ121 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

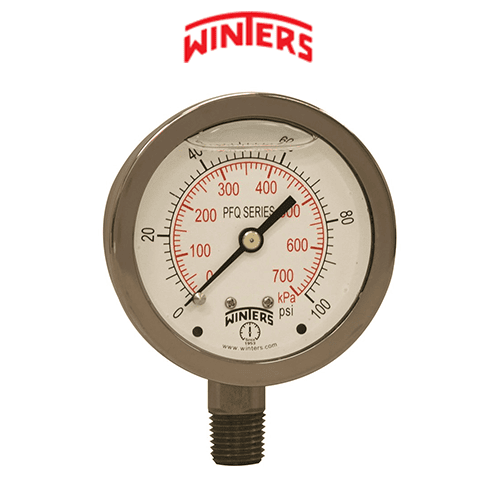

PFQ121 Winters Dial Pressure Gauge
For a quote, please email us at [email protected]
